The TinyCircuits TinyDuino is an Arduino compatible board in an ultra compact package. The TinyDuino processor board is roughly equivalent to the Arduino Uno board – same processor, same signals brought out to a shield connector. In fact, most Arduino sketches will work as is without any changes.

The TinyDuino Processor Board is available in three variations:

• With Lithium Battery Support - has an on-board Lithium battery charger that will charge the battery when attached to USB
• With coin cell battery support - for low power applications, use a simple CR1632 coin cell battery that can be easily changed
• Without battery options - the lightest and lowest cost option

Main Features:

• Atmega328P processor (same as is used on the Arduino Uno)
• Power Switch
• Status LED
• 8MHz ceramic resonator
• External power supported with a 0.1″ power connection holes
• Supports automatic switching between +5V and VBATT (if +5V is present, it will be used instead of the battery)

• Arduino Compatible
• Expandable with Stackable TinyShield Boards
• Optional battery connector for CR1612-CR1632 coin cell batteries
• Optional Lithium battery connector and charger
• 0.1″ spaced solder holes for external power source
• Robust Gold Finish – makes soldering easy and is non-corrosive
• Ultra compact size and weight (smaller than a US Quarter!)
•  20mm x 20mm (.787 inches x .787 inches)
• Max Height (without battery holder): 2.9mm (0.12 inches)
• Max Height (with coin cell battery holder): 6.58mm (0.26 inches)
• Ultra-thin 0.61mm (0.024 inches) PCB
• Weight: 1.10 grams (0.039 ounces) - Lithium version
• Atmel ATmega328P Microcontroller
• 32KB Flash, 2KB RAM, 1KB EEPROM
• 1.2mA (typical) @ 3V, 4MHz
• Default Clock speed: 8MHz
• 2.7V – 5.5V operating voltage
• 20 I/Os (14 Digital, 6 Analog / Digital I/O) – All the signals on the Arduino Shield connectors are supported!
• Arduino Bootloader preprogrammed (uses approx 0.5 KBytes of Flash Memory)

• If you are brand new to the TinyDuino, buying a kit is the best way to go since it will have all the parts needed.  Check out the TinyDuino Kits here
• All batteries are sold separately
• To program this board, you need to use the TinyShield USB Board
• This board does not include a voltage regulator – do not supply more than +5.5V to VBATT or the +5V signal or you will permanently damage the board and ruin your day.

• ATmega328p Processor Datasheet
• Schematic
• Eagle Files

Mounting kit for mounting up to 4 TinyDuino Boards / TinyShields together in a stack. This kit contains four screws, four nuts, and twelve 3mm spacers for in between the boards.

To learn more about the TinyDuino Platform, click here

• Four M1.2 Machine Screws, No Slot Oval Head, 15.0mm length
• Four M1.2 Hex Nuts, ACF 2.2mm
• Twelve Plastic Spacers, 3.0mm Height, 2.3mm ID, 3.2mm OD

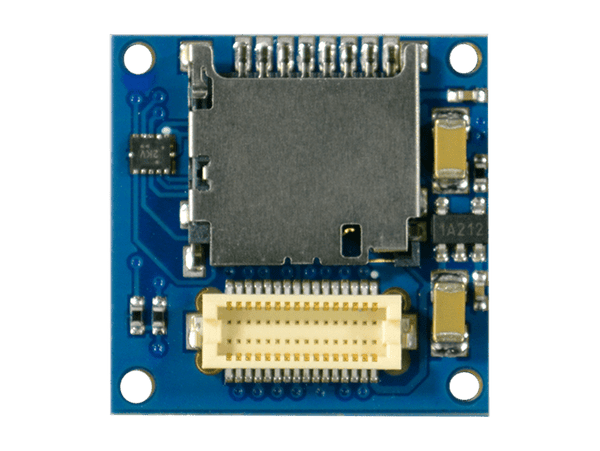

Sometimes you need to add a little storage to your projects, and sometimes you need a lot. This TinyShield microSD Adapter lets you add a huge amount of storage by connecting a microSD card to your TinyDuino. And with SD card support libraries included with the Arduino Software environment, you can have your project using microSD cards in a matter of minutes!

This TinyShield incorporates level shifters and a local power supply to ensure proper and safe operation over the entire TinyDuino operating voltage range up to 5V – no need to worry about damaging your microSD cards if you’re running at 5V..

To learn more about the TinyDuino Platform, click here

To see what other TinyShields this will work with or conflict with, check out the TinyShield Compatibility Matrix

MicroSD Specs

• Uses standard Arduino SD Card Library
• Supports standard microSD cards and SDHC cards

TinyDuino Power Requirements

• Voltage: 3.0V - 5.5V
• Current: 100mA or more during SD card writes, depends on the microSD card being used.  Because of this high current, the TinyDuino processor cannot be used with a coin cell.

Pins Used

SPI Interface used

• 10 - CS: This signal SPI chip select for the microSD card
• 11 - SCLK: This signal is the serial SPI clock out of the TinyDuino and into the microSD card.
• 12 - MISO: This signal is the serial SPI data out of the microSD card and into the TinyDuino.
• 13 - MOSI: This signal is the serial SPI data out of the TinyDuino and into the microSD card.

Dimensions

• 20mm x 20mm (.787 inches x .787 inches) Note: microSD car overhanges the edge by approx 3mm for easy removal
• Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 5.11mm (0.201 inches)
• Weight: 1.36 gram (.05 ounces)

• This does not include the microSD card (sold separately), you can get a compatible microSD card here.

• Arduino SD Card Library (built in the Arduino IDE)
• Schematic
• Eagle Files

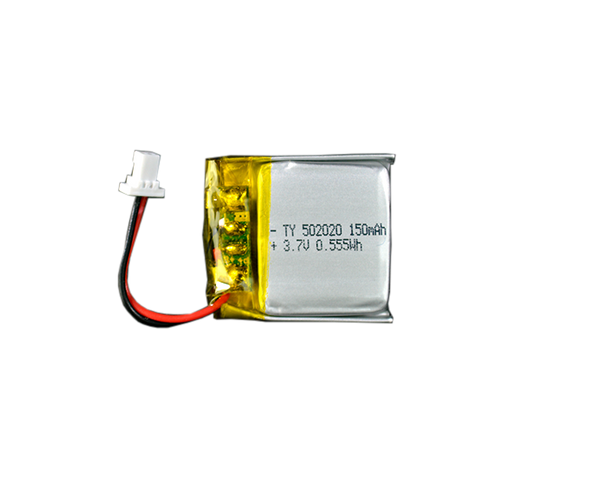

This is a tiny rechargeable Lithium ion polymer battery that fits perfectly behind the TinyDuino Processor board to power your projects. The battery has a capacity of 150mAh at 3.7V, the voltage can range from 4.2V when fully charged to 3.0V when completely discharged. The battery includes protection circuitry to protect the battery from over charging or completely discharging.

This battery includes a micro JST SH connector, which is used on TinyCircuits products that support Lithium ion batteries.

• Dimensions: 20.0mm x 20.0mm x 5.0mm (0.787" x 0.787" x 0.197")
• Wire Length: 12.0mm (0.472")
• Weight: 3.77 grams
• 3.7V, 150mAh

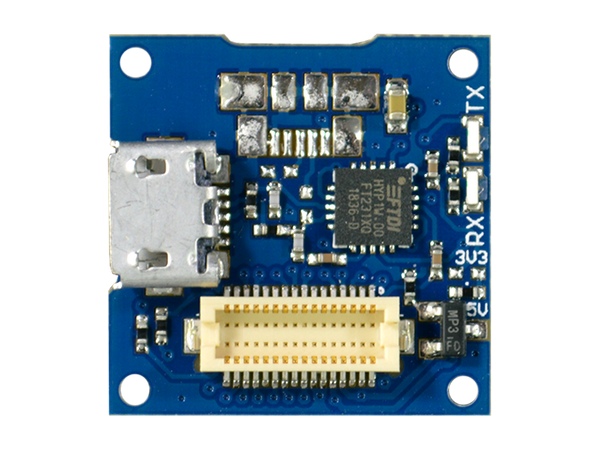

The USB TinyShield lets you connect your TinyDuino via a micro-USB connector. It uses the very popular FTDI FT231X USB to Serial converter IC (as used on most standard Arduino models). Using this board allows you to download new sketches via the Arduino IDE to your TinyDuino, and also allows you to add USB communication capabilities to your projects. This board supports RX and TX status LEDs so you can visualize the serial traffic to and from your TinyDuino.

The USB TinyShield is available in two variations on where the USB cable can plug in. Most TinyShields are square, which makes plugging in the USB cable simple to do at any angle. However, there are some TinyShields that are not square, so depending on their dimensions this can make plugging in the USB cable difficult.  For example: the WiFi TinyShield is long, so a side mount version of the USB connector works best for this. The TinyScreen is wide, which works best with the top mount version of the USB connector.

• Side USB Connector - The micro USB connector will come out the left side of the TinyDuino stack.  This works well for all TinyShields, except the TinyScreen and the Proto Terminal Block TinyShield.
• Top USB Connector - The micro USB connector will come out the top side of the TinyDuino stack.

To learn more about the TinyDuino Platform, click here

• USB 2.0 Full Speed Compatibility
• Micro-USB Receptacle
• Entire USB protocol handled on the chip - No USB-specific firmware programming required.
• Transmit and receive LEDs
• 300 baud to 115200 baud supported

TinyDuino Power Requirements

• Voltage: Supplies +5.0V to the TinyDuino stack
• Current: 300mA max.

Pins Used

• 0 - USB_RX: The signal is the UART receive on the TinyDuino from the USB
• 1 - USB_TX: The signal is the UART transmit from the TinyDuino to the USB

Dimensions

• 20mm x 20mm (.787 inches x .787 inches)
• Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 5.11mm (0.201 inches)
• Weight: 1.2 grams (.04 ounces)

• If you are brand new to the TinyDuino, buying a kit is the best way to go since it will have all the parts needed.  Check out the TinyDuino Kits here.
• By default this board will supply +5V to the TinyDuino stack.  It is possible to change this to only output 3.3V instead (with a max current of 50mA), by removing moving the 0 ohm resistor from the R4 position to the R5 position (requires advanced soldering skills).
• Revisions of this board before Rev 6 had a breakout for an Atmel ICSP connector to allow for In-circuit programming using a ICSP programmer.  These connections are no longer present on this board but can be accessed using a Proto TinyShield
• This board also uses the DTR line from the FTDI IC to support the auto-reset function when a new sketch is downloaded to the processor – eliminating the need for you to hit the reset button to reprogram your TinyDuino.

• FTDI USB Drivers
• Datasheet
• Schematic
• Eagle Files

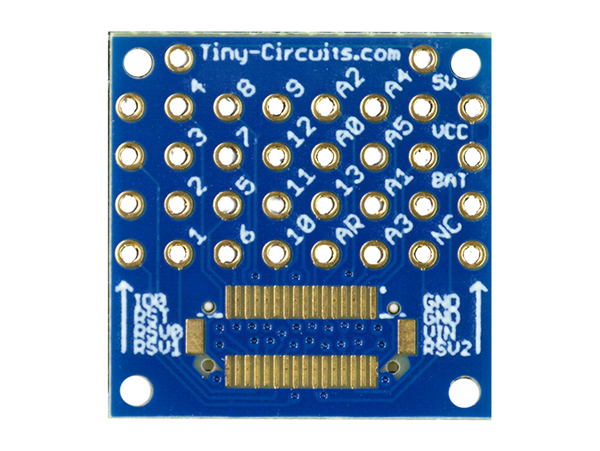

This proto board brings all of the TinyShield signals out to a point that you can solder to. All of the signals are marked and are spaced with 0.1″ spacing (same spacing as on the standard Arduino Uno), so a standard 0.1″ header can be used if desired.

This proto board can be ordered with or without a top stackable connector. By default, a top connector is not needed since the standard method is to use this proto board as the top board in a TinyDuino stack for the easiest access to the signals. However, when this board is ordered with the top stackable connector, it can be an inner layer of the TinyDuino stack (which can be useful in some projects).

Pins Supported

• All Shield signals supported

• VCC, VBATT,+3V3, +5V, VIN, GND, RSV2, RSV1, RSV0, RESET, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 - SS, 11 - MOSI, 12 - MISO , 13 - SCK, AR - AREF, A0, A1, A2, A3, A4/SDA, A5/SDL

Pins IO0 and IO1: These are also the hardware UART serial receive (RX) and transmit (TX) signals. Pin IO0 is RX and pin IO1 is TX. These are used by several of the TinyShields, namely the USB TinyShield which uses these to program the TinyDuino processor.

Pins IO2 and IO3: These pins can be used as External Interrupts 2 and 3. See the Arduino function attachInterrupt() for details.

Pins IO3, IO5, IO6, IO9, SS (IO10), MOSI (IO11): These pins can provide an 8-bit PWM. See the Arduino function analogWrite() for details.

Pins SS (IO10), MOSI (IO11), MISO (IO12), SCK (IO13): These pins support SPI communication. See the Arduino SPI Library for details.

Pin SCK (IO13): This pin is connected to the LED on the TinyDuino processor board.

Pins A0, A1, A2, A3, A4, A5: These are analog inputs connected 10-bit Analog-to-Digital Converter (ADC) of the microcontroller. See the Arduino function analogRead().

Pins A4 (SDA) and A5 (SCL): These pins can be used for I2C (also called TWI) communication. See the Arduino Wire Library for details.

Pin AREF: This pin can be connected to an external voltage reference for the analog inputs. See the Arduino function analogReference() for details.

Pin RESET: This pin is connected to the reset signal of the microcontroller, bring this signal LOW to reset the processor.

Pins RSV0, RSV1, RSV2: These pins are unique to the TinyDuino platform and are not currently used, and are reserved for future use.

Dimensions

• 20mm x 20mm (.787 inches x .787 inches)
• Max Height (No Top Connector): (from lower bottom TinyShield Connector to upper PCB level): 2.81mm (0.111 inches)
• Max Height (With Top Connector): (from lower bottom TinyShield Connector to upper PCB level): 5.11mm (0.201 inches)
• Weight (No Top Connector): 0.70 grams
• Weight (With Top Connector): 0.85 grams

• This TinyShield replaces all of the older style Proto1, Proto2 and Proto3 boards, which have been discontinued
• When using soldered wires, take care not to allow this to short out to boards above or below in the stack (ie, some pins could short out to the USB connector if the wires are long). If needed, use tape to insulate the solder connections.

• Schematic
• Eagle Files

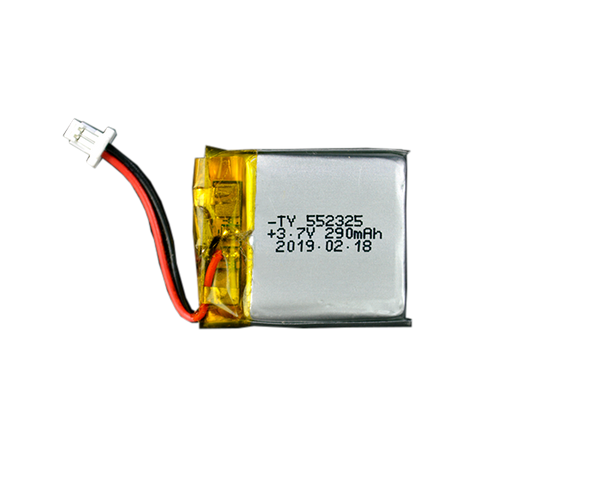

This is a rechargeable Lithium ion polymer battery that can power your projects. The battery has a capacity of 290mAh at 3.7V, the voltage can range from 4.2V when fully charged to 3.0V when completely discharged. The battery includes protection circuitry to protect the battery from over charging or completely discharging.

This battery includes a micro JST SH connector, which is used on TinyCircuits products that support Lithium ion batteries.

• Dimensions: 25.0mm x 23.0mm x 5.5mm (0.984" x 0.906" x 0.217")
• Wire Length: 12.0mm (0.472")
• Weight: 5.3 grams
• 3.7V, 290mAh

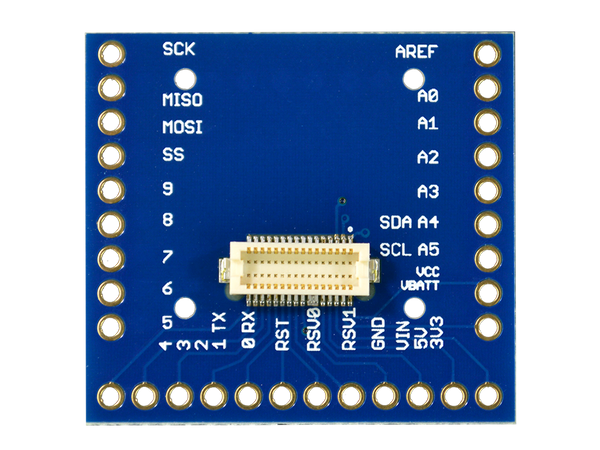

This board makes prototyping with the TinyDuino simple! We added screw terminals to every one of the signals available so you can create projects without having to solder. Just place a wire into the signal that you need and screw it down with a small screwdriver.

All of the shield signals are supported and are spaced with 0.1″ spacing. They're placed along the edge of the board, which extends past the normal width of the TinyDuino and ThinyShield boards; this enables easy access of any of the shield signals. Additional TinyShields can be placed on top of this proto board, so it can be located anywhere in your project's TinyDuino stack.

There are three options when ordering this board:

1. No Terminal Blocks – Just the board itself without the terminal blocks. You can solder or clip onto any of the signals.

2. You Install the Terminal Blocks – The terminal blocks are shipped along with the board, so you can solder them on yourself.

3. Terminal Blocks Installed – We solder the terminal blocks here and you receive the completed unit.

Pins Supported

• All Shield signals supported

• VCC, VBATT,+3V3, +5V, VIN, GND, RSV2, RSV1, RSV0, RESET, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, SS, MOSI, MISO, SCK, AREF, A0, A1, A2, A3, A4/SDA, A5/SDL

Dimensions

• 36mm x 36mm (1.417 inches x 1.417 inches)
• Max Height without Terminal Blocks (from lower bottom TinyShield Connector to upper PCB level): 2.81mm (0.111 inches)
• Max Height withTerminal Blocks (from lower bottom TinyShield Connector to upper PCB level): 11.81mm (0.111 inches)
• Weight without Terminal Blocks: 1.52 grams
• Weight with Terminal Blocks: 9.30 grams

• The terminal blocks will make it not possible to plug a USB Cable into a Side Mount USB TinyShield. Plan to use the Top Side Mount USB TinyShield instead.

• Schematic
• Eagle Files

To learn more about the TinyDuino Platform, click here

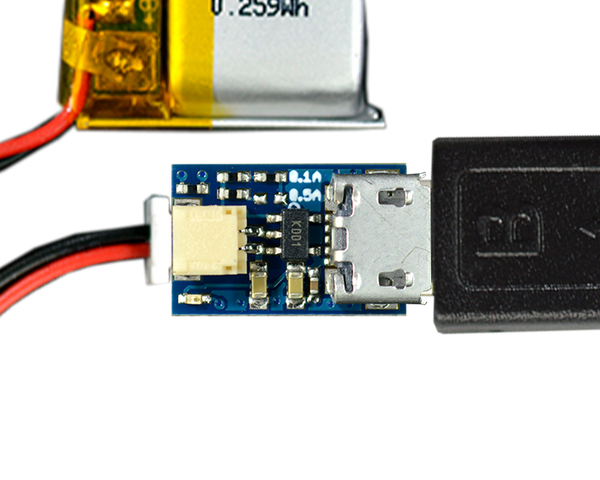

This is a standalone Lithium battery charger which lets you charge up your batteries from a micro USB cable.  The battery can connect to a JST SH connector  (the battery connector on the batteries that we sell at TinyCircuits). You can also use this without the JST connector with two large through holes to connect to a battery pack.

Simply plug the USB side with a cable into a USB port, and plug a lithium polymer or lithium ion rechargeable (3.7V / 4.2V) battery into the other side and it will start charging.  A status LED on the board will indicate when charging, and will turn off when fully charged.

Note: The battery and the microUSB cable are not included.

• 2-Pin JST SH Connector for battery connection
• Includes two solder tabs to connect directly to battery terminals if desired
• 100 mA charge current (can be set to 500mA with a resistor change)
• Status LED indicates when charging
• Robust Gold Finish – makes soldering easy and is non-corrosive

Dimensions

• PCB Dimensions: 14mm x 9mm (0.511 inches x 0.354 inches)
• Max Height: 3.7mm (0.146 inches)
• Thin 0.61mm (0.024 inches) PCB
• Weight: 0.540 grams (0.019 ounces)

• The charge current can be changed to 500mA by removing R3 and putting a 2K resistor in the R2 position.

• MCP73831 Datasheet
• Schematic
• Eagle Files

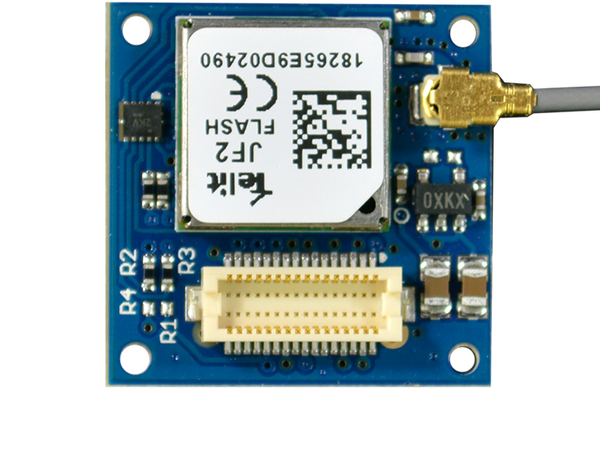

Use GPS positioning with your TinyDuino! This TinyShield is based on the Telit JF2 GPS Module, which uses the popular SiRFstar IV chipset. This module is configured by default to output GPS strings in the NMEA format at a 1Hz update rate (this can be changed to a 5HZ updated with a NMEA command).

This TinyShield includes an external passive GPS antenna on with U.FL connector for great outdoor performance.  This TinyShield also includes level shifters and a local power supply to ensure proper and safe operation over the entire TinyDuino operating voltage range up to 5V.

To learn more about the TinyDuino Platform, click here

To see what other TinyShields this will work with or conflict with, check out the TinyShield Compatibility Matrix

Telit JF2 GPS Specs

• Standards: NMEA and OSP
• Update Rate: 1Hz (default), 5Hz settable
• 48 Channel GPS architecture
• Positional Accuracy < 2.5m
• Accuracy Speed < 0.01m/s
• Accuracy Heading < 0.01deg
• Time to First Fix
• Hot Start: 1 sec
• Cold Start: < 35 sec

TinyDuino Power Requirements

• Voltage: 3.0V - 5.5V
• Current:
• 37mA (Full Power Tracking)
• 10mA (Low Power Tracking, 1Hz)
• 14uA (Hibernate Mode)
• Due to the current requirements, this board cannot be run using the TinyDuino coin cell option

Pins Used

• A0 - GPS_RX:  Software UART Transmit from the TinyDuino to the GPS Module.
• A1 - GPS_TX:  Software UART Receive to the TinyDuino from the GPS Module.
• A2 - SYS_ON:  This signal is an output the GPS module to indicate if the module is in an active mode (the signal is a logic-high) or in hibernate mode (the signal is a logic-low). By Default this signal is connected between the GPS module and the A2 signal using R7, which is a 0 ohm resistor. This resistor can be removed if this signal is not needed to free up A2 for other uses.
• A3 - ON_OFF: This signal is an input into the GPS module, and is used to transition between hibernate and active modes. Transitions between states are made with a low to high pulse on this signal (minimum time of 100uS).

Dimensions

• 20mm x 20mm (.787 inches x .787 inches).
• Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 5.11mm (0.201 inches)
• Antenna: 10mm x 10mm x 7mm (.394 inches x .394 inches x .276 inches).  40mm (1.57 inches) cable with U.FL connector
• Weight: Board: 1.65 grams (.06 ounces)  Antenna: 2.60 grams (0.09 ounces)

• Previous versions (Rev 3 and earlier) of this board shipped with an integrated chip antenna and the board size was 20mm x 28mm. The integrated GPS antenna is not as sensitive as larger GPS antennas. This antenna will not pick up GPS signals indoors and will only work well outdoors. For best results, keep all metal aware from the antenna and make sure it is used in an outdoor environment.
• Note: A number of the revision 5 TinyShields have modules configured to run at 4800 baud instead of 9600 baud. So if during testing the module does not seem to work at 9600, try it at 4800 baud.

• Telit JF2 product page
• Datasheet
• Schematic
• Eagle Files
• Sample Arduino code
• Customized TinyGPS library

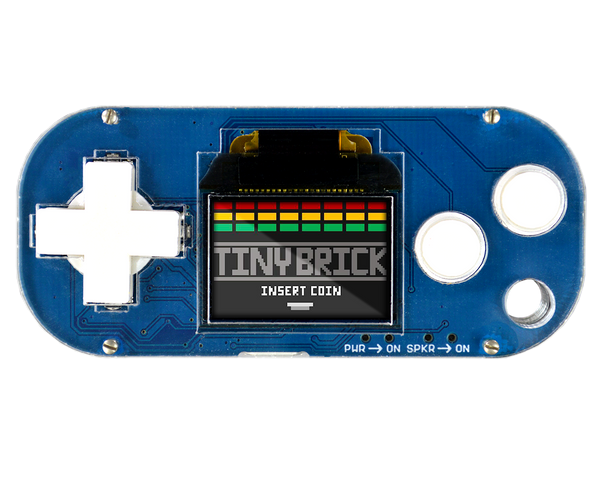

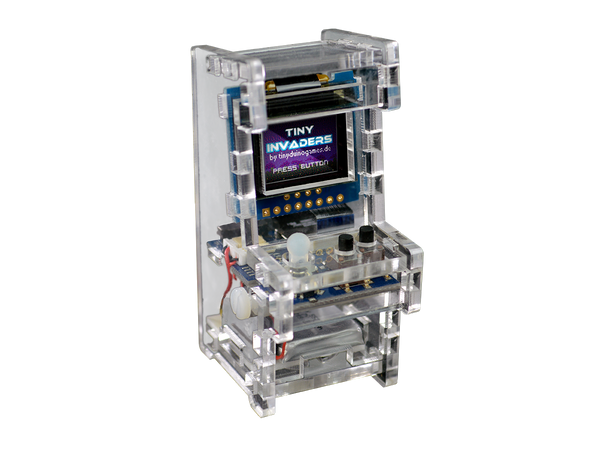

For use with the Tiny Arcade and the Pocket Arcade - these arcades really shine when using the internal microSD card slot! The Tiny Arcade can run a single game from it's internal memory, but with a microSD card, you can store many games and videos and use the Tiny Arcade menu to select which one to play.

This microSD card will be preloaded with the games and demo videos we have at the time of shipping, so you can just plug it in and start playing immediately.

All games for the Pocket Arcade and Tiny Arcade are free and open-source. Some of our favorites include Flappy Birdz, Tiny Brick, and Asteroids! Being open-source and providing free and customizable content, we look forward to building a community of gamers who edit and develop their own games. Share your work, join in the fun, ask questions and give design tips to others on the forum.

Tiny Brick

TinySTG

SuperOteme

Flappy Birdz

Tiny Asteroids

Tinytris

Tiny Invaders

Tiny Shooter

Tiny Run

This TinyShield lets you measure 9 degrees of freedom (9DOF) with your TinyDuino and features the ST LSM9DS1 - a system-in-package featuring a 3D digital linear acceleration sensor, a 3D digital angular rate sensor, and a 3D digital magnetic sensor.

The LSM9DS1 has a linear acceleration full scale of ±2g/±4g/±8/±16 g, a magnetic field full scale of ±4/±8/±12/±16 gauss and an angular rate of ±245/±500/±2000 dps.

The 9 Axis TinyShield incorporates level shifters and a local power supply to ensure proper and safe operation over the entire TinyDuino operating voltage range up to 5V.

To learn more about the TinyDuino Platform, click here

To see what other TinyShields this will work with or conflict with, check out the TinyShield Compatibility Matrix

ST LSM9DS1 9-Axis DOF Specs

• 3 acceleration channels, 3 angular rate channels, 3 magnetic field channels
• ±2/±4/±8/±16 g linear acceleration full scale
• ±4/±8/±12/±16 gauss magnetic full scale
• ±245/±500/±2000 dps angular rate full scale
• 16-bit data output
• “Always-on” eco power mode down to 1.9 mA
• Embedded temperature sensor
• Embedded FIFO
• Position and motion detection functions
• Click/double-click recognition

TinyDuino Power Requirements

• Voltage: 3.0V - 5.5V
• Current: 4.6mA (Normal Mode).  Due to the low current, this board can be run using the TinyDuino coin cell option

Pins Used

• A5/SCL - I2C Serial Clock line
• A4/SDA - I2C Serial Data line

Dimensions

• 20mm x 20mm (.787 inches x .787 inches)
• Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 5.11mm (0.201 inches)
• Weight: 1 gram (.04 ounces)

• You can also use this shield without the TinyDuino – there are 0.1″ spaced connections for power, ground, and the two I2C signals along the side of the TinyShield to allow you to connect a different system.  Warning: Revision 4 boards have a mistake on the silkscreen, the pin marked VCC is actually SCL, the pin marked SCL is actually SDA, and the pin marked SDA is actually VCC. If you connect this up the way it is marked you will not damage the board.

• ST LSM9DS1 product page
• Datasheet
• Schematic
• Eagle Files
• Sample Arduino code
• Arduino Library Download

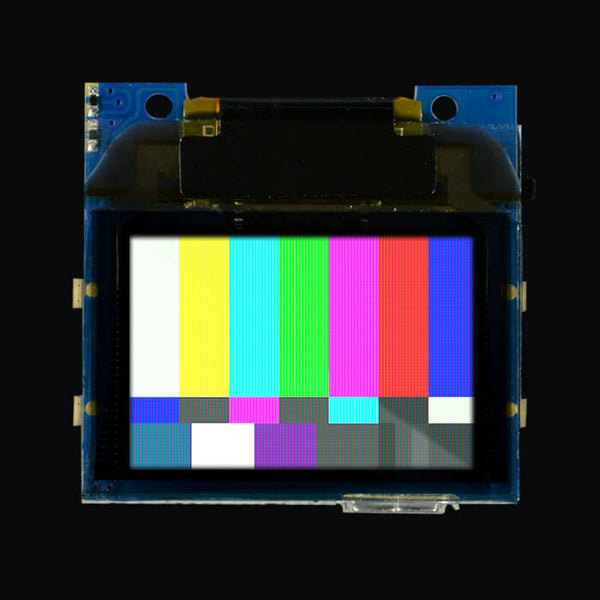

Update: Be sure to check out the TinyScreen+, an updated version that puts the processor, USB, battery charging and TinyScreen into a single board!

Originally Launched on Kickstarter!

TinyScreen is a beautiful color OLED display for your TinyDuino system. Create video games, a video player, or your own smart watch using this Tiny OLED screen! The screen is 0.96" diagonal with a resolution of 96x64 RGB pixels, each with 16-bit color. Since this is an OLED, there is no backlight needed and the screen is very bright with excellent colors. Four buttons are located along the side of the screen to allow for user input - like for playing games or creating menus for your projects (like is done on the TinyScreen Smartwatch project). The screen has a built in IO expander over I2C for control signals and button control, which eliminates using extra pins on the TinyDuino for this.

The screen uses an SSD1331 driver for the OLED display, and we have a highly optimized and easy to use library for this which supports both the OLED screen and the buttons on the board, even allowing for 20FPS+ video playback from a microSD with the TinyDuino. It's also very easy to create your own projects to display text and graphics, or create your own tiny games.

The TinyScreen is also available with an alternative device address, which allows two TinyScreens to be used on the same TinyDuino stack when used with a Ribbon Cable Extender or with a TinyScreen+.

To learn more about the TinyDuino Platform, click here

To see what other TinyShields this will work with or conflict with, check out the TinyShield Compatibility Matrix

TinyScreen Specs

• 96x64 OLED display, 16-bit color depth
• 0.96" (24.4mm) viewable area
• Total Size: 1.02" x 0.98" (25.8mm x 25.0mm)
• SSD1331 display controller
• Software controllable backlight (OLED brightness)
• Power down mode
• Four push buttons along the sides (connected to IO pins)

TinyDuino Power Requirements

• Voltage: 3.0V - 5.5V
• Current:  20 - 45mA (depending on brightness), due to the current requirements, this board cannot be run using the TinyDuino coin cell option

Pins Used

SPI and I2C Interface used:

• A5/SCL - I2C Serial Clock line
• A4/SDA - I2C Serial Data line
• 11 - SCLK: This signal is the serial SPI clock out of the TinyDuino and into the TinyScreen.
• 13 - MOSI: This signal is the serial SPI data out of the TinyDuino and into the TinyScreen.
• Note: SPI Chip select and button inputs are handled by the on-board I2C GPIO expander.

Dimensions

• Dimensions: 25.8mm x 25mm (1.01 inches x .984 inches)
• Max Height (screen surface to bottom of TinyShield connector): 4.40mm (0.173inches)
• Weight: 3.2 grams (.113 ounces)

• The TinyScreen library can be downloaded through the Arduino IDE menu at Sketch->Include Library->Manage Libraries... "TinyScreen"
• TinyScreen Revision 5 boards can shut down the OLED boost converter for better power-down consumption, supported by our latest software library.
• TinyScreen is also available with an alternative device address, which allows two TinyScreens to be used on the same TinyDuino stack when used with a Ribbon Cable Extender or with a TinyScreen+.

• SSD1331 Datasheet
• OLED Datasheet
• Schematic
• Eagle Files
• Sample Arduino code

This kit allows TinyShields to be spaced apart from one another. Using two flat flex ribbon cable boards, you can now place your TinyScreen or any other TinyShield remote from the main TinyDuino stack. This kit includes two Ribbon Cable TinyShield boards and one 6 inch ribbon cable.

To learn more about the TinyDuino Platform, click here

Pins Supported

• All Shield signals supported

• VCC, VBATT,+3V3, +5V, VIN, GND, RSV2, RSV1, RSV0, RESET, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, SS, MOSI, MISO, SCK, AREF, A0, A1, A2, A3, A4/SDA, A5/SDL

Dimensions

• Boards: 20mm x 20mm (.787 inches x .787 inches)
• Board Max Height (With Top Connector): (from lower bottom TinyShield Connector to upper PCB level): 5.11mm (0.201 inches)
• Ribbon Cable: 150mm x  15.9mm (5.9 inches x .625 inches)
• Weight (each Board): 1.05 grams (0.04 ounces)
• Weight (Ribbon Cable): 0.85 grams (0.03 ounces)

• Schematic
• Eagle Files

The Dual Motor TinyShield allows you to drive two independently controlled DC brushed motors from your TinyDuino. Create your own tiny robots or drones! Using two of the super miniature but very powerful 2mm x 2mm TI DRV8837 Motor Driver (H-Bridge) IC, this shield will allow for up to 1.8A per channel and operate motors between 1.8 to 11V. This TinyShield includes a built in motor controller to make driving motors simple and uses the TinyDuino I2C interface - saving GPIO pins on the TinyDuino processor for other tasks. An easy-to-use Arduino library is provided to control this..

To learn more about the TinyDuino Platform, click here

To see what other TinyShields this will work with or conflict with, check out the TinyShield Compatibility Matrix

TI DRV8837 H-bridge motor driver

• Low MOSFET On-Resistance: HS + LS 280mOhm
• 1.8A Max Drive Current (Recommend 500mA max)
• 1.8V to 11V Motor Operating Supply Voltage Range

TinyDuino Power Requirements

• Voltage: 3.0V - 5.5V
• Current: 5mA (Logic only)

Pins Used

• A5/SCL - I2C Serial Clock line
• A4/SDA - I2C Serial Data line

Dimensions

• 20mm x 20mm (.787 inches x .787 inches)
• Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 5.11mm (0.201 inches)
• Weight: 1.62 grams (.06 ounces)

• While the DRV8837 supports 1.8A @ 11V, we highly recommend operating under 500mA @ 5V per channel unless you have some really good heat sinking in place.
• Up to 4 Dual Motor TinyShields can be stacked together in one TinyDuino stack. However, the I2C address needs to be different for each TinyShield. This can be changed with resistors R1 and R2 (soldering is required for this).
• By default, the motor power supply input connection is connected to the VBATT connection on the TinyDuino. Therefore, you can run your TinyDuino and the motors off the same battery when it's plugged into this TinyShield.  However, when using this, be sure not to exceed 5.5V on this power input or it will damage the TinyDuino circuitry.  If a higher motor voltage is required, you can remove resistor R3 which will allow you to run the motor voltage independently from the TinyDuino logic voltage.
• Even though the motor driver can support 11V at 1.8Amps, we do not recommend using more than a 5V motor at 500mA due to the small size.
• Be sure that your power supply is sufficient to operate these motors as well as your logic – batteries are the best. If you are running both the motors and the logic off of one power supply, we recommend avoid using a switching power supply as the transients caused can potentially damage items connected to the logic side.


• TI DRV8837 Product Page
• Datasheet
• Schematic
• Eagle Files
• Sample Arduino code

This TinyShield lets you add a battery-backed real-time clock (RTC) to your TinyDuino projects. This lets your project keep accurate time even through the TinyDuino being reprogrammed or power losses. It is based around the Maxim DS1339 RTC and supports counting in seconds, minutes, hours, days, date, month and year with leap-year compensation (valid up to 2100).

The RTC has two time-of-day alarms that can be set to wake up the main TinyDuino processor from sleep (very useful in long term data logging applications) and will automatically switch to using the backup battery upon power loss. The backup battery is a rechargeable Lithium coin cell which is soldered onto the TinyShield and will keep the RTC time for 2.5 years before being recharged. Trickle charging of the backup battery can be enabled using a software command.

To learn more about the TinyDuino Platform, click here

To see what other TinyShields this will work with or conflict with, check out the TinyShield Compatibility Matrix

Maxim DS1339 Real-Time Clock (RTC) Specs

• Real-Time Clock (RTC) Counts Seconds, Minutes, Hours, Day, Date, Month, and Year with Leap-Year Compensation Valid Up to 2100
• Two Time-of-Day Alarms
• Oscillator Stop Flag
• Automatic Power-Fail Detect and Switch Circuitry
• Backup battery trickle charge (software controlled)

TinyDuino Power Requirements

• Voltage: 3.0V - 5.5V
• Current: 450uA (Active Mode).  Due to the low current, this board can be run using the TinyDuino coin cell option
• Built in Backup Battery
• 11mAh rechargeable Lithium 3.0V backup battery.
• Provides 2.5 years of timekeeping backup
• Backup battery trickle charging under software control
• Backup battery current: 600 nA

Pins Used

• A5/SCL - I2C Serial Clock line
• A4/SDA - I2C Serial Data line

Dimensions

• 20mm x 20mm (.787 inches x .787 inches)
• Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 5.11mm (0.201 inches)
• Weight: 1.58 grams (.06 ounces)

• The backup battery can be recharged from the main TinyDuino power supply via a software command, see the example code or the datasheet for more information.

• Maxim DS1339 product page
• Datasheet
• Schematic
• Eagle Files
• Sample Arduino code

• To learn more about the Real-Time Clock TinyShield please visit our learn page.

Our Bluetooth Low Energy (BLE) TinyShield allows you to connect your TinyDuino system to any compatible iOS or Android (4.3+) device using Bluetooth Low Energy (also known as Bluetooth Smart and Bluetooth 4.0). This technology is great for low power sensors and accessories and works with most modern phones without the need for jailbreaking on iOS devices. This TinyShield is based around the popular Nordic nRF8001 chipset and allows wireless communication up to 10 meters away. The TinyShield also Includes power supply and level shifters on the board, so you can run your TinyDuino from 3.0V – 5V.

The Nordic rRF8001 chipset only support slave mode which allows it to connect to master Bluetooth LE devices (like a smartphone), however it cannot connect to another Bluetooth LE slave device (ie, two of these boards cannot communicate directly with each other).  If you need master mode as well, take a look at the Bluetooth Low Energy TinyShield Bluegiga version.

Note: This product is for ADVANCED USERS, and requires that the user develops their own iOS or Android BLE app in order to use this.

To learn more about the TinyDuino Platform, click here

To see what other TinyShields this will work with or conflict with, check out the TinyShield Compatibility Matrix

Nordic BLE nRF8001 Specs

• Fully Bluetooth Smart v4.0 compliant
• Supports slave mode
• Integrated Bluetooth Smart stack
• LL, L2CAP, GAP, SM, ATT and GATT mandatory features for peripheral role operation
• Bluetooth Smart profiles
• Radio performance
• Integrated chip antenna
• TX power: +0 dBm to -18 dBm
• Receiver sensitivity: -87 dBm
• Range: up to 10m

TinyDuino Power Requirements

• Voltage: 3.0V - 5.5V
• Current:
• Transmit: 11mA (0 dBm)
• Down to 4µA for 4s connection interval
• Down to 9µA for 1s connection interval
• Down to 16µA for 500ms connection interval
• Down to 30µA for 250ms connection interval
• Deep Sleep Mode: 0.5 uA
• Due to the low current, this board can be run using the TinyDuino coin cell option

Pins Used

SPI Interface used

• 2 - SPI_IRQ: This signal is the interrupt output from the nRF8001 to the TinyDuino.
• 9 - BLE_RST: This signal is the reset signal to the nRF8001.
• 10 - SPI_CS: This signal is the SPI chip select for the nRF8001.
• 11 - MOSI: This signal is the serial SPI data out of the TinyDuino and into the radio transceiver.
• 12 - MISO: This signal is the serial SPI data out of the radio transceiver and into the TinyDuino.
• 13 - SCLK: This signal is the serial SPI clock out of the TinyDuino and into the radio transceiver.

Dimensions

• 20mm x 20mm (.787 inches x .787 inches)
• Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 5.11mm (0.201 inches)
• Weight: 1.1 grams (.04 ounces)

• The interrupt signal can be changed from pin 2 to pin 3 by removing resistor R2 and soldering it to position R3
• The nRF8001 only supports slave mode, so you will need a master to connect to (such as a smartphone).  Two nRF8001 cannot communicate directly with each other.  If master mode BLE is required, check out the Bluetooth Low Energy TinyShield (Bluegiga).

• Datasheet
• Schematic
• Eagle Files
• Sample Arduino code

This TinyShield features the high performance and low power Bosch BMA250 3-axis accelerometer.  The BMA250 allows measurement of accelerations in three perpendicular axes and thus senses tilt, motion, shock, and vibration in your projects. There is also an integrated temperature sensor built in.

Even though the BMA250 is designed to run at 1.8V – the Accelerometer TinyShield incorporates level shifters and a local power supply to ensure proper and safe operation over the entire TinyDuino operating voltage range up to 5V.

To learn more about the TinyDuino Platform, click here

To see what other TinyShields this will work with or conflict with, check out the TinyShield Compatibility Matrix

Bosch BMA250 Accelerometer Specs

• 3-axis (X, Y & Z)
• Digital resolution: 10bit
• Resolution: 3.9mg
• Measurement ranges: +-2g, +-4g, +-8g, +-16g
• Sensitivity: 2g: 256LSB/g, 4g: 128LSB/g, 8g: 64LSB/g, 16g: 32LSB/g
• Zero-g offset (over lifetime): +-80mg
• Bandwidths: 1000Hz… 8Hz
• Low Power: 139uA @2kHz data rate

TinyDuino Power Requirements

• Voltage: 3.0V - 5.5V
• Current: 139uA (Normal Mode).  Due to the low current, this board can be run using the TinyDuino coin cell option

Pins Used

• A5/SCL - I2C Serial Clock line
• A4/SDA - I2C Serial Data line

Dimensions

• 20mm x 20mm (.787 inches x .787 inches)
• Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 5.11mm (0.201 inches)
• Weight: 1 gram (.04 ounces)

• You can also use this shield without the TinyDuino – there are 0.1″ spaced connections for power, ground, and the two I2C signals along the side of the TinyShield to allow you to connect a different system.  Warning: Revision 4 boards have a mistake on the silkscreen, the pin marked VCC is actually SCL, the pin marked SCL is actually SDA, and the pin marked SDA is actually VCC. If you connect this up the way it is marked you will not damage the board.
• Previous versions of this board will look a bit different and have the board number ASD2611-R, however they are functionally equivalent to this updated version and the accelerometer circuitry is identical.  Earlier versions also had two interrupt pins broken out to solder points, these are not present on the current version of this board.

• Bosch BMA250 3-axis accelerometer product page
• Datasheet
• Schematic
• Eagle Files
• Sample Arduino code

This TinyDuino Basic Kit has the bare essentials to get going with the TinyDuino!  This kit comes with a TinyDuino processor with the coin cell battery holder (coin cell battery not included), so you can run your low power projects with a coin cell battery.  You can also power your TinyDuino with a USB cable plugged in.

This kit includes the following items:

• TinyDuino Processor Board w/ coin cell battery holder - Runs your Arduino programs
• TinyShield USB Board - Used to communicate with your TinyDuino from your computer and upload new programs (USB Side Mount version)
• TinyShield Proto board (without top connector) - Used to connect to external circuitry if needed
• Hardware Mounting Kit (Screws, nuts and standoffs) - Used to securely mount the TinyDuino boards together.

To learn more about the TinyDuino Platform, click here

• For higher power projects you may want to check out the
• TinyDuino Basic Kit - Lithium Battery Version, which includes a rechargeable Lithium Polymer Battery pack.
• The TinyDuino processor board included has the coin cell option.  The coin cell (a CR1632) is not included in the kit.
• The coin cell battery can only be used for low power applications and cannot be used to power every TinyShield (such as the TinyScreen or the WiFi TinyShield).  In these cases, plan on using the Lithium battery version of the TinyDuino Processor.
• A micro USB cable is not included in the kit.

Our new Bluetooth Low Energy (BLE) TinyShield combines both master and slave modes into one module! This TinyShield allows you to connect your TinyDuino system to any compatible iOS or Android device using Bluetooth Low Energy (also known as Bluetooth Smart and Bluetooth 4.1). This technology is great for low power sensors and accessories and works with most modern phones. This shield acts as a drop-in hardware and software replacement for NRF8001 (Nordic) TinyShield projects. Unlike previous BLE TinyShields, your Arduino sketch code can modify your module's connection parameters directly.

This TinyShield is based around the BlueNRG-MS chipset by STMicroelectronics, which comes in the SPBTLE-RF module. The TinyShield also includes power supply and level shifters on the board, so you can run your TinyDuino from 3.0V – 5V.

Since the SPBTLE-RF module supports both master and slave modes, you can communicate both with a Bluetooth LE device (i.e. a smartphone) and another BLE TinyShield or other BLE module with slave mode. If you have one of our previous BLE models, a BlueGiga or a Nordic, it can communicate with those as well.

To learn more about the TinyDuino Platform, click here

To see what other TinyShields this will work with or conflict with, check out the TinyShield Compatibility Matrix

ST SPBTLE-RF Specs

• Fully Bluetooth v4.1 compliant
• Supports master and slave modes
• Multiple modes supported simultaneously
• Integrated Bluetooth Smart stack
• GAP, ATT/GATT, SM, L2CAP, LL, RFPHY
• Bluetooth Smart profiles
• Radio performance
• Integrated chip antenna
• TX power: +4 dBm
• Receiver sensitivity: -88 dBm
• Range: up to 20m

TinyDuino Power Requirements

• Voltage: 3.0V - 5.5V
• Current:
• Transmit: 10.9mA (+4 dBm)
• Receive: 7.3mA (Standard mode)
• Down to 8.7µA average for 1s connection interval
• Down to 14.5µA average for 500ms connection interval
• Down to 26.1µA average for 250ms connection interval
• Down to 119.9µA average for 50ms connection interval
• Deep Sleep Mode: 1.7 µA
• Due to the low current, this board can be run using the TinyDuino coin cell option

Pins Used

SPI Interface used

• 2 - SPI_IRQ: This signal is the interrupt output from the SPBTLE-RF to the TinyDuino.
• 9 - BT_RESET: This signal is the reset signal to the SPBTLE-RF.
• 10 - SPI_CS: This signal is the SPI chip select for the SPBTLE-RF.
• 11 - MOSI: This signal is the serial SPI data out of the TinyDuino and into the radio transceiver.
• 12 - MISO: This signal is the serial SPI data out of the radio transceiver and into the TinyDuino.
• 13 - SPI_CLK: This signal is the serial SPI clock out of the TinyDuino and into the radio transceiver.

Dimensions

• 20mm x 20mm (.787 inches x .787 inches)
• Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 5.11mm (0.201 inches)
• Weight: 1.49 grams (0.053 ounces)

• This product is for advanced users, and typically requires that the user develops their own iOS or Android BLE app in order to use this.
• The interrupt signal can be changed from pin 2 to pin 3 by removing resistor R2 and soldering it to position R3.

• BlueNRG-MS product page
• Datasheet (BlueNRG-MS)
• SPBTLE-RF product page
• Datasheet (SPBTLE-RF)
• Schematic
• Eagle Files
• Arduino Library and Example Code
