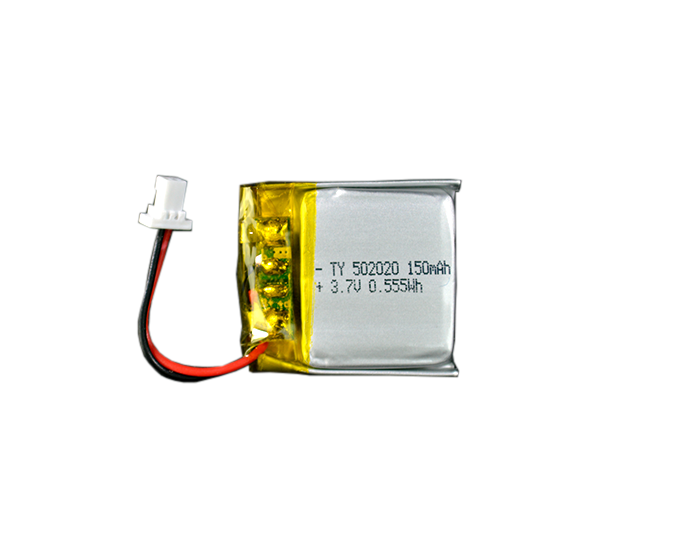

Lithium Ion Polymer Battery - 3.7V 150mAh
DESCRIPTION
This is a tiny rechargeable lipo Lithium-ion polymer battery that fits perfectly behind the TinyDuino Processor board to power your projects. The battery has a capacity of 150mAh at 3.7V, the voltage can range from 4.2V when fully charged to 3.0V when completely discharged. The battery includes protection circuitry to protect the battery from overcharging or completely discharging.
This lipo battery includes a micro JST SH connector, which is used on TinyCircuits products that support Lithium-ion batteries.
TECH SPECS
- Nominal Voltage: 3.7V
- Nominal Capacity: 150mAh
- Max Charge Current: 150mA (1C)
- Max Discharge Current: 150mA (1C)
- Dimensions: 20.0±3.0mm x 20.0±2.0mm x 5.0±0.5mm (0.787±0.118" x 0.787±0.079" x 0.197±0.020")
- Wire Length: 25.0±10mm (0.98±0.39")
- Weight: 3.77 grams
- Battery Connector: JST SHR-02V-S-B
- Mating Connector: JST SM02B-SRSS-TB(LF)(SN)
DOWNLOADS
- CAD and images
- Battery Datasheet
- Material Safety Datasheet (MSDS)
- Certifications: UL1642, UN38.3, IEC62133
IN THE BOX
1× device (assembled) · 1× USB-C cable · Quick-start card
SPECIFICATIONS
Made & tested in Akron, Ohio, USA.
SHIPPING & RETURNS
Ships from Akron, Ohio within 1–2 business days. Free USPS shipping on U.S. orders over $100. 30-day returns on unused units in original packaging.
I bought this battery to replace the one in a pair of Sciton BBLink googles. The old goggles simply stopped charging. It would have cost $5000 to purchase another pair of the googles. When I took it apart, I saw the battery and looked for a matching one elsewhere. This site was the only place to have the specific connection type that I needed. I am thrilled to say that the new battery charged fine, and my shutter goggles are working better than before. Thank you very much.
Bought a couple of these for testing a project, seem to be just the ticket. Have not extensively tested this yet however. Shipping to me in Taiwan was uncomplicated and customs was no problem.
Perfect for momentary LED lighting. No problems, easy assembly, and very dependable! Thanks again Tiny Circuits!
This battery is a direct replacement for the Carrera 2.4 GHz Wireless controller. Part number 89823. I have also tested jbl flip 4 batteries (around 15$) which have same wattage output but MUCH longer life / size 3200 mah vs 150 mah. The jbl flip battery will not fit inside the controller without modification to the controller, however it will zip tie on outside and fit an adult hand well.
I like this battery because it is a good shape, size, and capacity. I use them for different projects and as replacement batteries for some of my devices. I recently used one to replace the weak battery in my G8 Waterproof MP3 player I use for swimming, which saved me from having to buy a new one for $145.00 just for a weak battery.
Fast courteous service
just as described, arrived on a timely manner. Very satisfied customer. Will order again as needed for my toy remote control mini helicopter.
The battery is what I expected, it was in stock and was shipped quickly. I'm a satisfied customer.
Smallest SH plugs on these lion cells are well done. Only source i've found for consistent quality.
Thanks for sharing your skill.
Tinycircuits was only place i could find the right sized battery. Little bit thicker than original but made it work. Polarity was reversed, i corrected that with rewiring. Saved me a lot of money.
