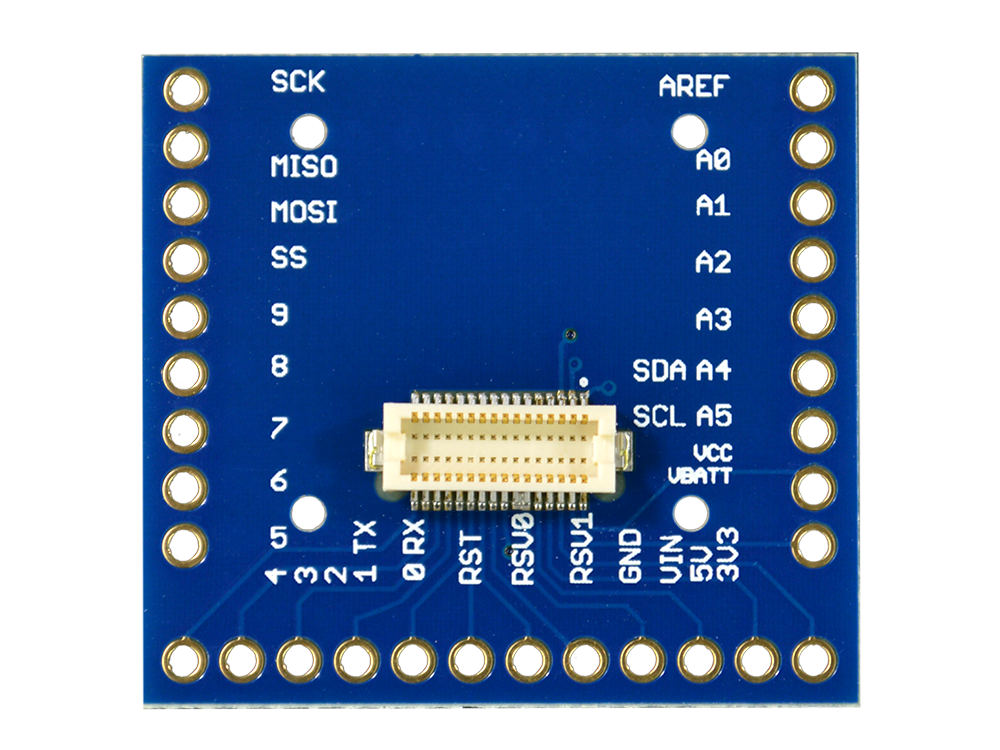

Proto Terminal bare board with quarter size comparison

Proto Terminal blocks included not installed

Proto Terminal Blocks TinyShield

Name: Proto Terminal Blocks Shield | TinyCircuits.com
Brand: TinyCircuits
SKU: ASD2005-R-T-I
Price: 12.95 USD
Availability: InStock
Rating: 5.00 (2 reviews)

ASD2005-R-T-I

183 in stock

$ 12.95

Terminal Blocks

Already Installed

Solder Yourself

None

Quantity

[{"id":14984805575,"title":"Already Installed","option1":"Already Installed","option2":null,"option3":null,"sku":"ASD2005-R-T-I","requires_shipping":true,"taxable":true,"featured_image":{"id":12509937762388,"product_id":4411881607,"position":4,"created_at":"2019-09-18T11:18:37-04:00","updated_at":"2020-01-21T14:22:41-05:00","alt":"Proto Terminal blocks included not installed","width":1800,"height":1350,"src":"\/\/tinycircuits.com\/cdn\/shop\/products\/ASD2005-R-T-Product-Image-01.png?v=1579634561","variant_ids":[14984805511,14984805575]},"available":true,"name":"Proto Terminal Blocks TinyShield - Already Installed","public_title":"Already Installed","options":["Already Installed"],"price":1295,"weight":3,"compare_at_price":null,"inventory_quantity":183,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","featured_media":{"alt":"Proto Terminal blocks included not installed","id":2163432161364,"position":4,"preview_image":{"aspect_ratio":1.333,"height":1350,"width":1800,"src":"\/\/tinycircuits.com\/cdn\/shop\/products\/ASD2005-R-T-Product-Image-01.png?v=1579634561"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":14984805511,"title":"Solder Yourself","option1":"Solder Yourself","option2":null,"option3":null,"sku":"ASD2005-R-T","requires_shipping":true,"taxable":true,"featured_image":{"id":12509937762388,"product_id":4411881607,"position":4,"created_at":"2019-09-18T11:18:37-04:00","updated_at":"2020-01-21T14:22:41-05:00","alt":"Proto Terminal blocks included not installed","width":1800,"height":1350,"src":"\/\/tinycircuits.com\/cdn\/shop\/products\/ASD2005-R-T-Product-Image-01.png?v=1579634561","variant_ids":[14984805511,14984805575]},"available":true,"name":"Proto Terminal Blocks TinyShield - Solder Yourself","public_title":"Solder Yourself","options":["Solder Yourself"],"price":995,"weight":3,"compare_at_price":null,"inventory_quantity":183,"inventory_management":"shopify","inventory_policy":"deny","barcode":"852844005242","featured_media":{"alt":"Proto Terminal blocks included not installed","id":2163432161364,"position":4,"preview_image":{"aspect_ratio":1.333,"height":1350,"width":1800,"src":"\/\/tinycircuits.com\/cdn\/shop\/products\/ASD2005-R-T-Product-Image-01.png?v=1579634561"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":14984805447,"title":"None","option1":"None","option2":null,"option3":null,"sku":"ASD2005-R","requires_shipping":true,"taxable":true,"featured_image":{"id":12509932027988,"product_id":4411881607,"position":1,"created_at":"2019-09-18T11:17:51-04:00","updated_at":"2020-01-21T14:22:22-05:00","alt":"Proto Terminal bare board","width":1000,"height":750,"src":"\/\/tinycircuits.com\/cdn\/shop\/products\/ASD2005-R-Product-Image-01.png?v=1579634542","variant_ids":[14984805447]},"available":true,"name":"Proto Terminal Blocks TinyShield - None","public_title":"None","options":["None"],"price":495,"weight":3,"compare_at_price":null,"inventory_quantity":183,"inventory_management":"shopify","inventory_policy":"deny","barcode":"852844005235","featured_media":{"alt":"Proto Terminal bare board","id":2163427147860,"position":1,"preview_image":{"aspect_ratio":1.333,"height":750,"width":1000,"src":"\/\/tinycircuits.com\/cdn\/shop\/products\/ASD2005-R-Product-Image-01.png?v=1579634542"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

DESCRIPTION

This board makes prototyping with the TinyDuino simple! We added screw terminals to every one of the signals available so you can create projects without having to solder. Just place a wire into the signal that you need and screw it down with a small screwdriver.

All of the shield signals are supported and are spaced with 0.1″ spacing. They're placed along the edge of the board, which extends past the normal width of the TinyDuino and ThinyShield boards; this enables easy access of any of the shield signals. Additional TinyShields can be placed on top of this proto board, so it can be located anywhere in your project's TinyDuino stack.

There are three options when ordering this board:

1. No Terminal Blocks – Just the board itself without the terminal blocks. You can solder or clip onto any of the signals.

2. You Install the Terminal Blocks – The terminal blocks are shipped along with the board, so you can solder them on yourself.

3. Terminal Blocks Installed – We solder the terminal blocks here and you receive the completed unit.

TECH SPECS

Pins Supported

All Shield signals supported
VCC, VBATT,+3V3, +5V, VIN, GND, RSV2, RSV1, RSV0, RESET, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, SS, MOSI, MISO, SCK, AREF, A0, A1, A2, A3, A4/SDA, A5/SDL

Dimensions

36mm x 36mm (1.417 inches x 1.417 inches)
Max Height without Terminal Blocks (from lower bottom TinyShield Connector to upper PCB level): 2.81mm (0.111 inches)
Max Height withTerminal Blocks (from lower bottom TinyShield Connector to upper PCB level): 11.81mm (0.111 inches)
Weight without Terminal Blocks: 1.52 grams
Weight with Terminal Blocks: 9.30 grams

NOTES

The terminal blocks will make it not possible to plug a USB Cable into a Side Mount USB TinyShield. Plan to use the Top Side Mount USB TinyShield instead.
