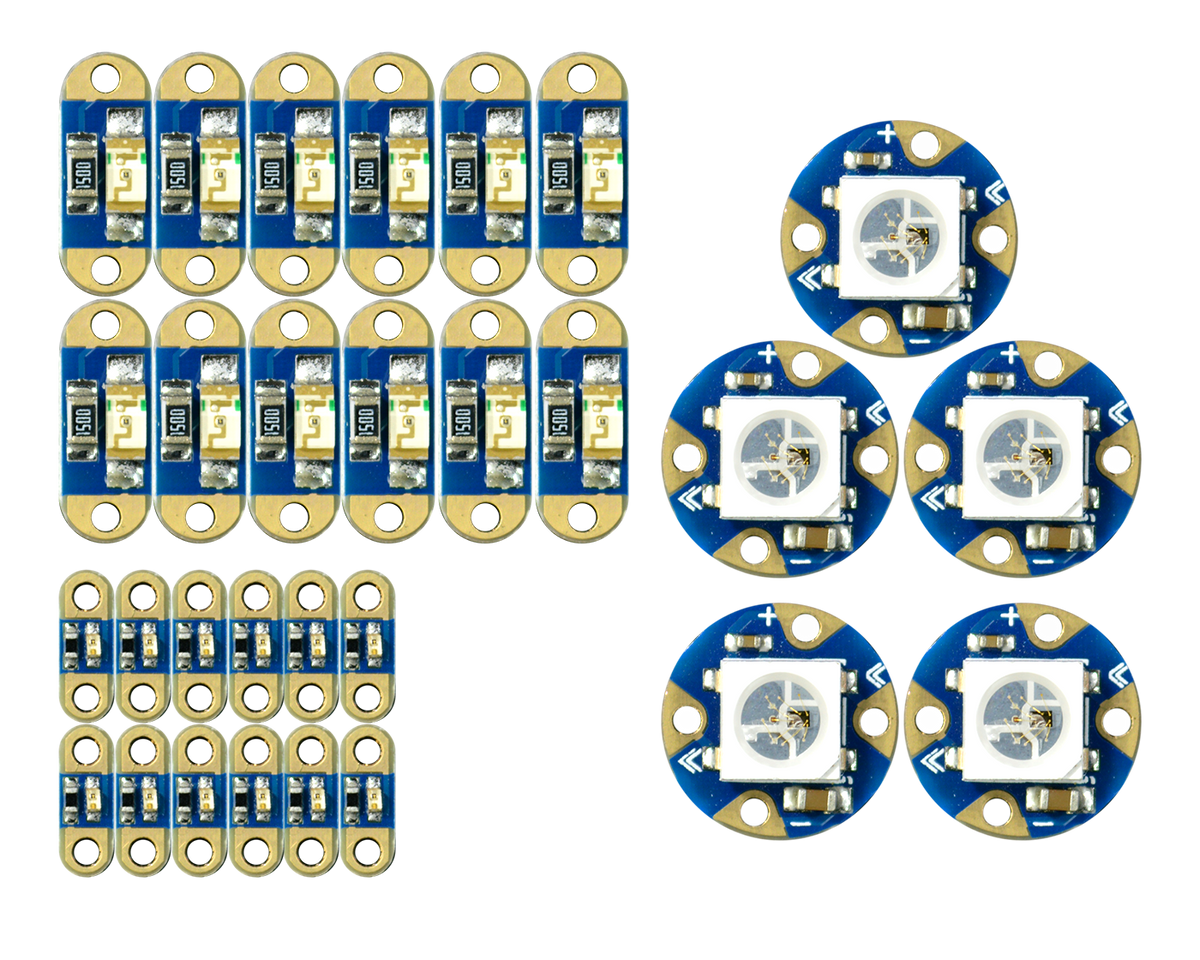

TinyLily LED Variety Pack
TinyLily RGB LED quarter size comparison
TinyLily LED 0402 quarter size comparison
TinyLily LED 1206 quarter size comparison
TinyLily LED Variety Pack
TinyLily RGB LED quarter size comparison
TinyLily LED 0402 quarter size comparison
TinyLily LED 1206 quarter size comparison

TinyLily LED Variety Pack

ASK2008

1 in stock
$ 9.95 Save $ -9.95
OR
DESCRIPTION

This TinyLily LED Variety Pack includes a mixture of all of our sewable LEDs so you can create some really cool wearable projects.

This kit includes the following items:



    TECH SPECS

    TinyLily LED 0402

    • Washable
    • Two Sewtabs – 1.2mm in diameter, easy to use with standard conductive thread and needles
    • Robust Gold Finish – makes soldering easy and is non-corrosive

      Power Requirements

      • Voltage: 3.0V - 5.5V
      • Current:
        • 1.5mA per LED (3.0V)
        • 5.0mA per LED (5.0V)

      Dimensions

      • 6.5mm x 2.5mm (0.26 inches x 0.1 inches)
      • Max Height: 1.11mm (0.044 inches)
      • Ultra-thin 0.61mm (0.024 inches) PCB
      • Weight: .02 grams (0.0007 ounces)

      TinyLily LED 1206

      • Washable
      • Two Sewtabs – 1.2mm in diameter, easy to use with standard conductive thread and needles
      • Robust Gold Finish – makes soldering easy and is non-corrosive

        Power Requirements

        • Voltage: 3.0V - 5.5V
        • Current:
          • 1.5mA per LED (3.0V)
          • 5.0mA per LED (5.0V)

        Dimensions

        • Dimensions: 10.2mm x 4mm (0.40 inches x 0.18 inches)
        • Max Height: 1.44mm (0.057 inches)
        • Ultra-thin 0.61mm (0.024 inches) PCB
        • Weight: .06 grams (0.002 ounces)

        TinyLily RGB LED

        • Washable
        • Four Sewtabs – 1.2mm in diameter, easy to use with standard conductive thread and needles
        • Robust Gold Finish – makes soldering easy and is non-corrosive

          Power Requirements

          • Voltage: 3.0V - 5.5V
          • Current: (depends on color and brightness)
            • Red: 30mA
            • Green: 20mA
            • Blue: 30mA
            • White: 65mA

          Dimensions

          • Dimensions: 10mm diameter(0.394 inches)
          • Max Height: 2.5mm (0.1 inches)
          • Ultra-thin 0.61mm (0.024 inches) PCB
          • Weight: .192 grams (0.007 ounces)
            DOWNLOADS

            TinyLily 0402 LED

            TinyLily 1206 LED

            TinyLily RGB LED
