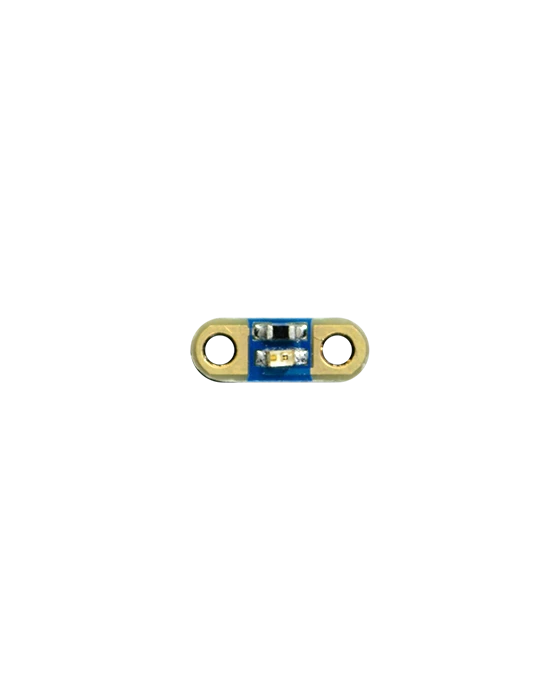

TinyLily LED 0402
TinyLily LED 0402 quarter size comparison
TinyLily LED 0402 back view
TinyLily LED 0402

TinyLily LED 0402

ASL1001-LR

248 in stock
Regular price $ 0.99 Save $ -0.99

OR

So you want the smallest possible sewable LED for your project? Try out the TinyLily LED 0402 which sports a total size of just 6.5mm x 2.5mm! Yet this tiny little guy still includes standard TinyLily sewtabs and a current limiting resistor, so you don’t have to worry about blowing it up or adding an external resistor. Available with Red, Green and Amber LED color options.

    • Washable
    • Two Sewtabs – 1.2mm in diameter, easy to use with standard conductive thread and needles
    • Robust Gold Finish – makes soldering easy and is non-corrosive

      Power Requirements

      • Voltage: 3.0V - 5.5V
      • Current:
        • 1.5mA per LED (3.0V)
        • 5.0mA per LED (5.0V)

      Dimensions

      • 6.5mm x 2.5mm (0.26 inches x 0.1 inches)
      • Max Height: 1.11mm (0.044 inches)
      • Ultra-thin 0.61mm (0.024 inches) PCB
      • Weight: .02 grams (0.0007 ounces)
