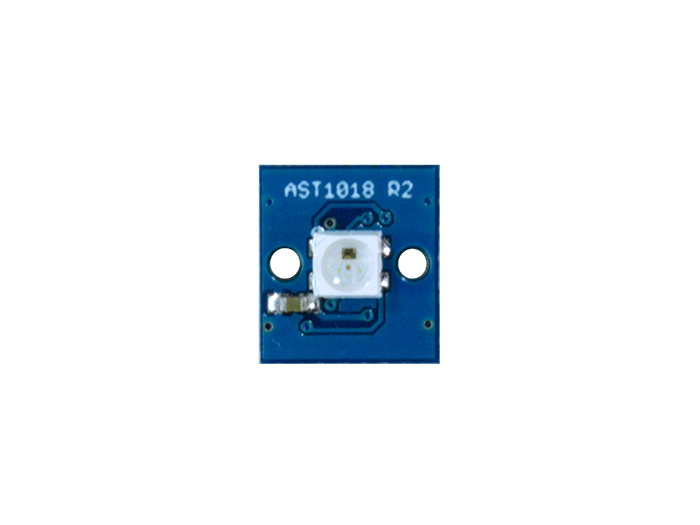

RGB LED Wireling

AST1018-1

Whisker Kickstarter Item


Note: This item is currently only available on Kickstarter, it will be for sale on our site after the Kickstarter is complete and rewards have been fulfilled



DESCRIPTION

This Wireling features a 3.5mm Serial RGB LED, enabling you to add 24-bit resolution color to your Tiny Project! This LED has a built-in driver IC, so it requires special libraries and serial data, not just applied voltage. This Wireling also features a second connector, allowing you to string multiple LEDs together!



    TECH SPECS

    SK6812 Mini Specs

    • Built-in power-on reset and reset circuit
    • Refresh rate 30 frames per second with data transmission frequency of 800 Kbps
    • 24-bit resolution color

      Power Requirements

      • Voltage: 3.0V - 5.5V
      • Current: (depends on color and brightness)
        • Red: 30mA
        • Green: 20mA
        • Blue: 30mA
        • White: 65mA

      Pins Used

      • A5/SCL - I²C Serial Clock line
      • A4/SDA - I²C Serial Data line

      Dimensions

      • 10mm x 11mm (.393 inches x .433 inches)
      • Max Height (from lower bottom of Wireling to upper top Wireling Connector): 4.70mm (0.19 inches)
      • Weight: 1 gram (.04 ounces)

      NOTES

      • You can also use this shield without the TinyDuino – modifying the connecting cable by removing the opposite connector and stripping/tinning the wires, you can solder the connector cable to any other microcontroller board of your choice!
