Lithium Ion Polymer Battery - 3.7V 500mAh
Lithium Ion Polymer Battery - 3.7V 500mAh quarter size comparison
Lithium Ion Polymer Battery - 3.7V 500mAh
Lithium Ion Polymer Battery - 3.7V 500mAh
Lithium Ion Polymer Battery - 3.7V 500mAh quarter size comparison
Lithium Ion Polymer Battery - 3.7V 500mAh

Lithium Ion Polymer Battery - 3.7V 500mAh

ASR00035

$ 6.95 Save $ -6.95
OR
DESCRIPTION

This is a rechargeable Lithium-ion polymer battery that works perfectly with the TinyDuino Processor board to power your projects. The lipo battery has a capacity of 500mAh at 3.7V, the voltage can range from 4.2V when fully charged to 3.0V when completely discharged. The battery includes protection circuitry to protect the battery from overcharging or completely discharging.

This battery includes a micro JST-SH connector, which is used on TinyCircuits products that support Lithium-ion batteries.



TECH SPECS
  • Nominal Voltage: 3.7V
  • Nominal Capacity: 500mAh
  • Max Charge Current: 500mA (1C)
  • Max Discharge Current: 500mA (1C)
  • Dimensions: 30.0±3.0mm x 20.0±2.0mm x 9.5±0.5mm (1.181±0.118" x 0.787±0.079" x 0.374±0.020")
  • Wire Length: 37±5.0mm (1.457±0.197")
  • Weight: 8 grams
  • Battery Connector: JST SHR-02V-S-B
  • Mating Connector: JST SM02B-SRSS-TB(LF)(SN)
DOWNLOADS

Customer Reviews

Based on 8 reviews
88%
(7)
0%
(0)
13%
(1)
0%
(0)
0%
(0)
P
Pete Johanson

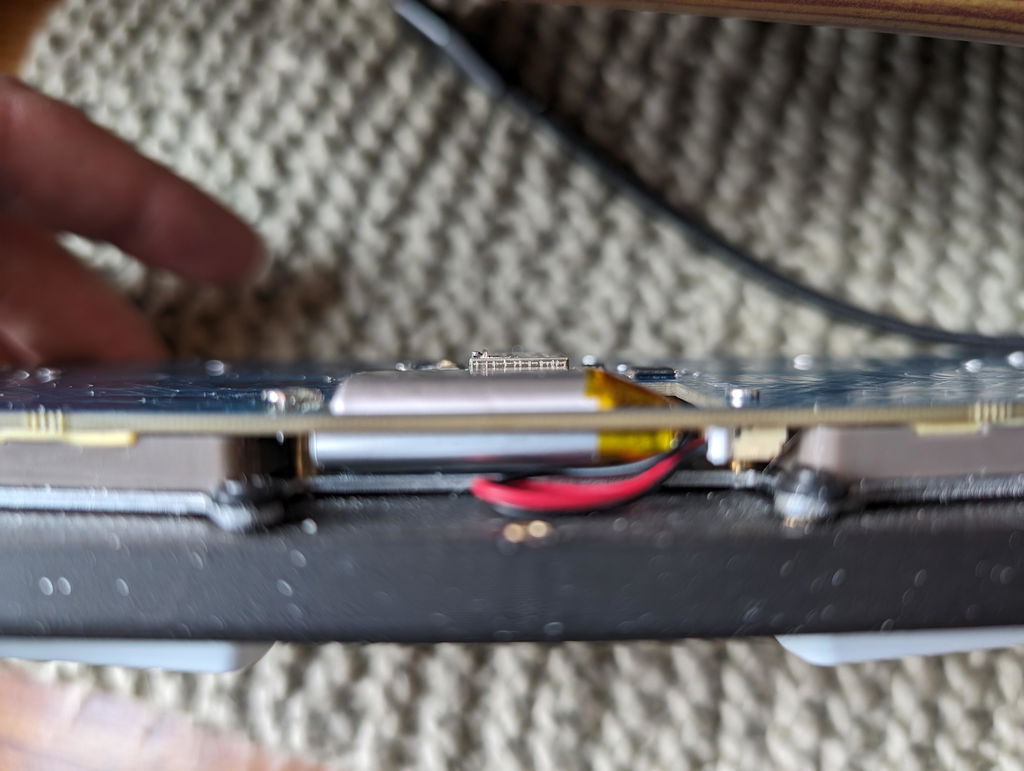

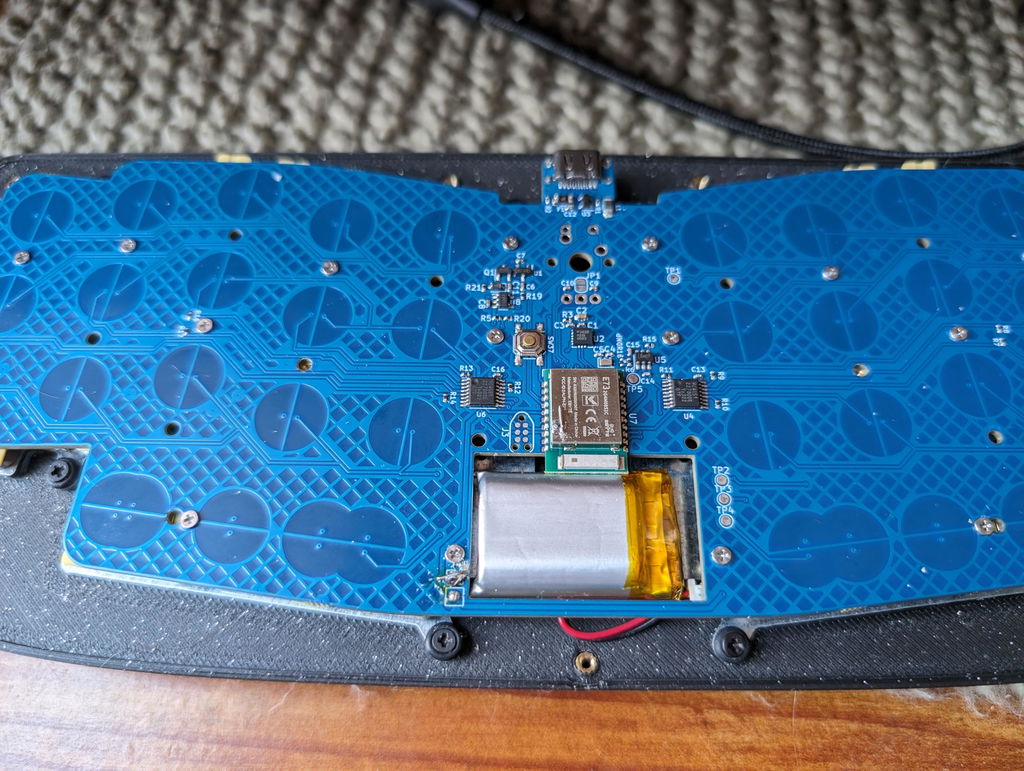

Perfect for my wireless keyboard build

Always happy to have TinyCircuits have a lipo in a size that works for a keyboard design of mine. This particular one was a perfect fit for a wireless Topre prototype of mine, and having standard connector and polarity in something I can find domestically without rolling the dice on AliExpress is awesome.

User picture User picture
L
Louis Smith
Perfect replacement

A piece of gear came in DOA - vendor support said "not fixable". Well, guess what... one battery from Tiny Circuits and the unit works just fine. Much easier than dealing with foreign vendors.

S
Susan
Great price

Great price ! if I had only bought the right battery so it's useless to me
