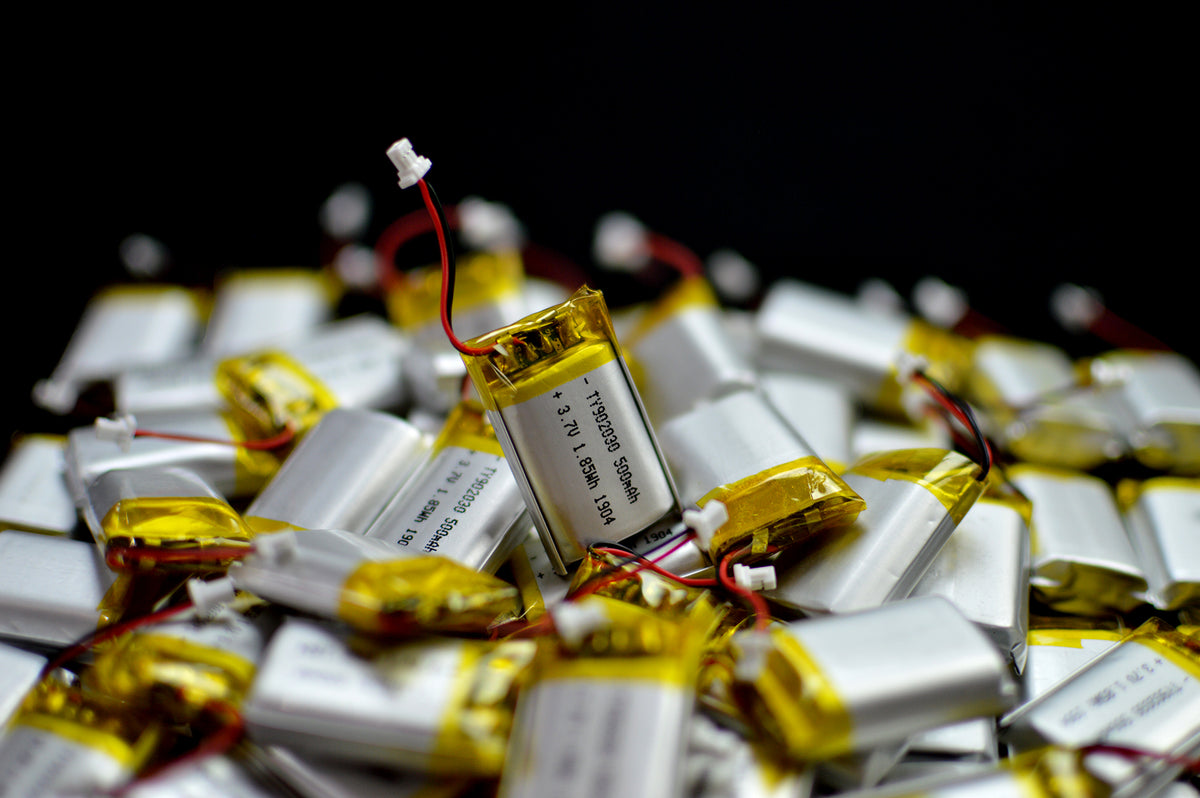

Charging TinyCircuits Lithium Ion Polymer Batteries
This tutorial will teach you the options for charging TinyCircuits Lithium Ion Polymer rechargeable batteries. You can use one of our Lithium-adapted processor boards that have built-in recharging capabilities, or the Tiny Battery Charger board specifically designed for charging our batteries.
This tutorial is applicable to all of our batteries except the 18650 2500mAh Battery.
- Micro USB Cable
- Battery - we have a wide range!
- Note: TinyCircuits batteries use a JST-SH 2-pin connector
- Battery Connector Part: JST SHR-02V-S-B
- Battery Mating Connector Part (used on all of the below electronics): JST SM02B-SRSS-TB(LF)(SN)
- Any of these charging-capable electronics:
- A power source, such as a computer or wall outlet
Option 1: Charge Batteries using a TinyCircuits Processor
All of our processors that can directly be powered by a Lithium battery, can also be recharged via the processor board. This capability extends to some of our kits, including the Tiny Arcade, and TinySaber. See the full list of compatible boards above under Hardware!
To use any of these boards to charge a battery, plug the battery into the processor or electronic device. Then plug the device into a power source, such as a computer, using a Micro USB cable. A status LED on the board will indicate when a battery is charging, and the LED will turn off when the battery is fully charged.
Option 2: Tiny Battery Charger
If you do not have a need for any of our processors, or do not yet own hardware capable of charging a lithium ion polymer battery, the ASL2112 Tiny Battery Charger is a great, cost-effective option!
The ASL2112 is a standalone Lithium battery charger that can be used with a Micro USB B cable. Use the JST SH connector on the ASL2112 board to easily plug-in a battery. Alternatively, a battery can be connected without the JST SH connector by using the two through holes (J3 and J4 on the schematic) to connect to a battery pack.
- The charge current can be changed to 500mA by moving R5 (next to the 0.1mA label on the silkscreen) to the R4 (next to the 0.5mA label on the silkscreen) position.
To charge a battery with ASL2112, plug the USB B side of the charger into a power source using a compatible cable, and plug a lithium polymer or lithium ion rechargeable (3.7V / 4.2V) battery into the other side. A status LED on the board will indicate when a battery is charging, and the LED will turn off when the battery is fully charged.
If you have any questions or feedback, feel free to contact TinyCircuits support or make a post on the TinyCircuits forum.
