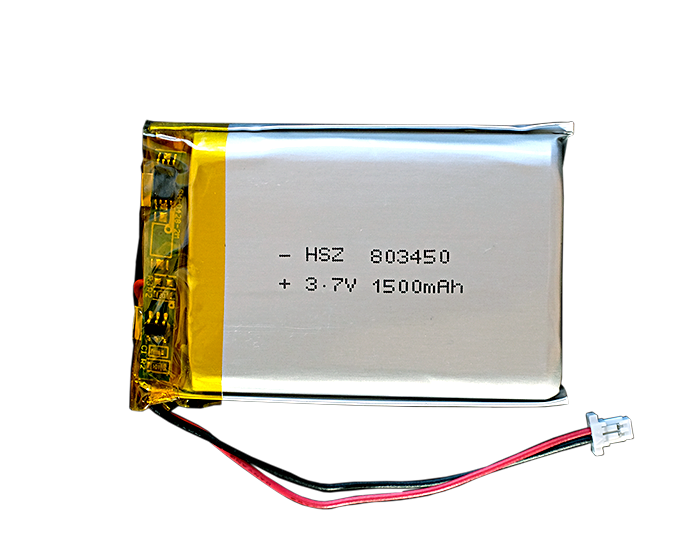

This is a rechargeable Lithium-ion polymer (lipo) battery that can power your projects. The battery has a capacity of 1500mAh at 3.7V, the voltage can range from 4.2V when fully charged to 3.0V when completely discharged. The battery includes protection circuitry to protect the battery from over charging or completely discharging.
This lipo battery includes a micro JST SH connector, which is compatible with TinyCircuits products.
- Nominal Voltage: 3.7V
- Nominal Capacity: 1500mAh
- Max Charge Current: 1500mA (1C)
- Max Discharge Current: 1500mA (1C)
- Dimensions: 8.0 ± 0.5mm x 34.0 ± 2.0mm x 50.0 ± 3.0mm (0.315±0.020" x 1.339±0.0787" x 1.969±0.118")
- Wire Length: 62.0 ± 5.0mm (2.440±0.197")
- Weight: 25.1 grams
- Battery Connector: JST SHR-02V-S-B
- Mating connector: JST SM02B-SRSS-TB(LF)(SN)
- CAD and images
- Battery Datasheet
- Certifications: UL1642
