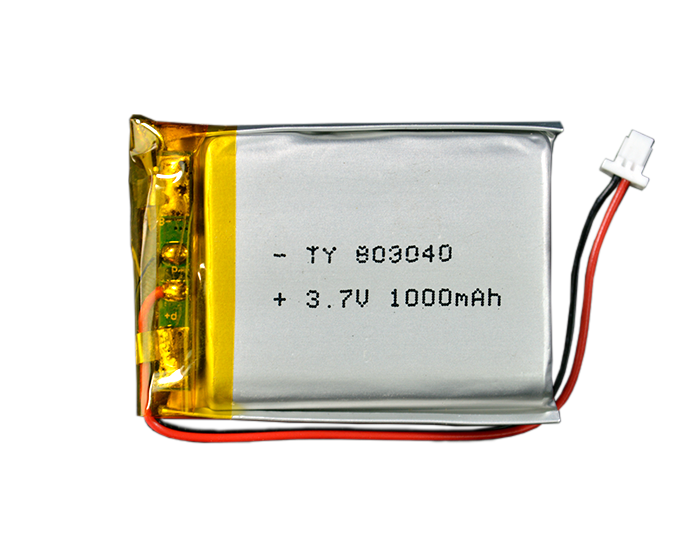

Lithium Ion Polymer Battery 3.7V 1000mAh
This is a tiny rechargeable Lithium-ion polymer battery to power your projects. The battery has a capacity of 1000mAh at 3.7V, the voltage can range from 4.2V when fully charged to 3.0V when completely discharged. The battery includes protection circuitry to protect the battery from overcharging or completely discharging.
This lipo battery includes a micro JST SH connector, which is used on TinyCircuits products that support Lithium-ion batteries.
TECH SPECS
- Nominal Voltage: 3.7V
- Nominal Capacity: 1000mAh
- Max Charge Current: 1000mA (1C)
- Max Discharge Current: 1000mA (1C)
- Dimension: 40.0±3.0mm x 30.0±2.0mm 8.0±0.5mm (1.575±0.118" x 1.181±0.079" x 0.315±0.020")
- Wire Length: 60.0±5mm (2.362±0.197")
- Weight: 17.7 grams (0.624 ounces)
- Battery Connector: JST SHR-02V-S-B
- Mating Connector: JST SM02B-SRSS-TB(LF)(SN)
DOWNLOADS
- CAD and images
- Battery Datasheet
- Material Safety Datasheet (MSDS)
- Certifications: UL1642, UN38.3
IN THE BOX
1× device (assembled) · 1× USB-C cable · Quick-start card
SPECIFICATIONS
Made & tested in Akron, Ohio, USA.
SHIPPING & RETURNS
Ships from Akron, Ohio within 1–2 business days. Free USPS shipping on U.S. orders over $100. 30-day returns on unused units in original packaging.
