Joystick Wireling - TinyCircuits
Joystick Wireling compared to a dime
Joystick Wireling - TinyCircuits
Joystick Wireling back view

Joystick Wireling

AST1011

32 in stock
Regular price $ 5.95 Save $ -5.95

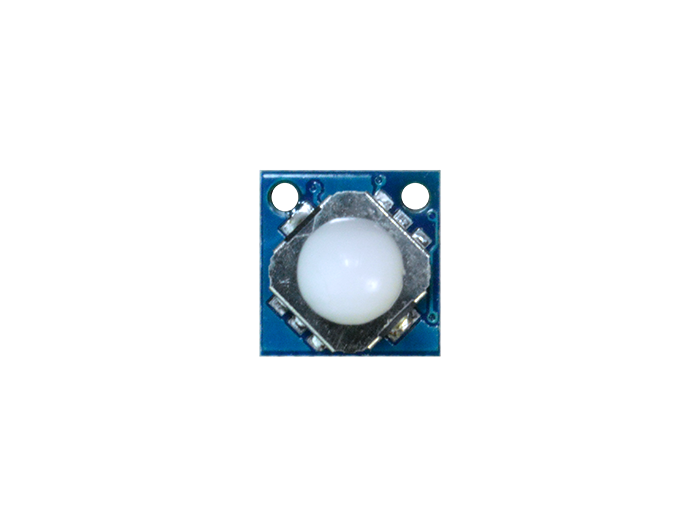

This Wireling lets you use a discrete joystick for inputs to your project! This Up, Down, Left, Right joystick board interfaces with an I2C I/O expander to be read by the an Arduino processor or Raspberry Pi!

*Please note that this is not a full range joystick. It is a discrete joystick which is essentially 4 buttons mounted sideways at the base of the joystick knob.

Note* 5-Pin Wireling cables not included and sold separately.

    SX1505 Specs

    • 8 Channel GPIO with NINT and NRESET
    • Fully programmable logic functions (PLD)

    SKRHABE010 Joystick Specs

    • 4 Directional Digital Joystick
    • Center Pushbutton Input
    • I2C Semtech SX1505 I/O Expander

      TinyDuino Power Requirements

      • Voltage: 3.0V - 5.5V
      • Current: 1.0uA (Normal Mode).  Due to the low current, this board can be run using the TinyDuino coin cell option

      Pins Used

      • A5/SCL - I²C Clock
      • A4/SDA - I²C Data

      Dimensions

      • 17mm x 10mm (.670 inches x .394 inches)
      • Max Height (from the lower bottom of Wireling to upper top Wireling Connector): 16mm (0.63 inches)
      • Weight: 1 gram (.04 ounces)
      • You can also use this Wireling without the TinyDuino – modifying the connecting cable by removing the opposite connector and stripping/tinning the wires, you can solder the connector cable to any other development board of your choice!
