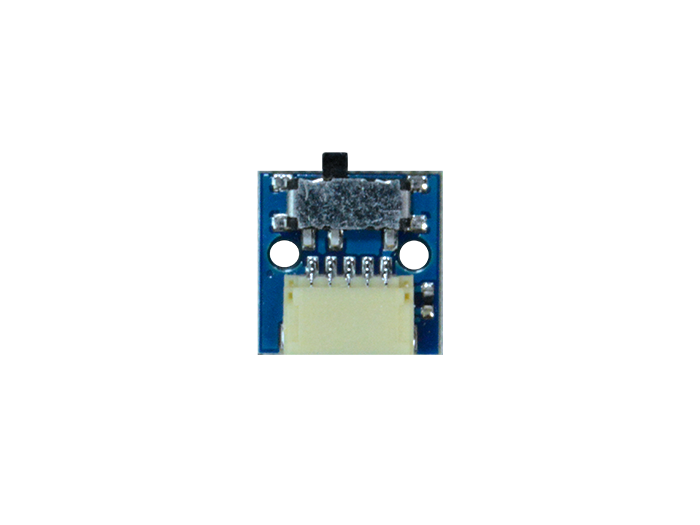

Slide Switch Wireling
$ 2.95
DESCRIPTION
This Wireling uses the same slide switch found on our Tiny Arcade Kit, as a simple logic level switch. Use this board to mechanically choose between HIGH or LOW.
New to Wirelings? Check out the Wireling Overview!
Note* 5-Pin Wireling cables not included and sold separately.
TECH SPECS
Specs
- Cover: Stainless Steel
- Mechanical Lifecycle: 10,000 cycles
TinyDuino Power Requirements
- Voltage: 3.0V - 5.5V
Pins Used
- A5/SCL - I²C Serial Clock line
- A4/SDA - I²C Serial Data line
Dimensions
- 10mm x 10mm (.394 inches x .394 inches)
- Max Height (from the lower bottom of Wireling to upper top Wireling Connector): 3.70mm (0.15 inches)
- Weight: 1 gram (.04 ounces)
NOTES
- You can also use this shield without the TinyDuino – modifying the connecting cable by removing the opposite connector and stripping/tinning the wires, you can solder the connector cable to any other microcontroller board of your choice!
DOWNLOADS
Free U.S. shipping over $100
1-year hardware warranty
Made & tested in Ohio
Open-source firmware
IN THE BOX
1× device (assembled) · Quick-start card
SPECIFICATIONS
Made & tested in Akron, Ohio, USA.
SHIPPING & RETURNS
Ships from Akron, Ohio within 1–2 business days. Free USPS shipping on U.S. orders over $100. 30-day returns on unused units in original packaging.
