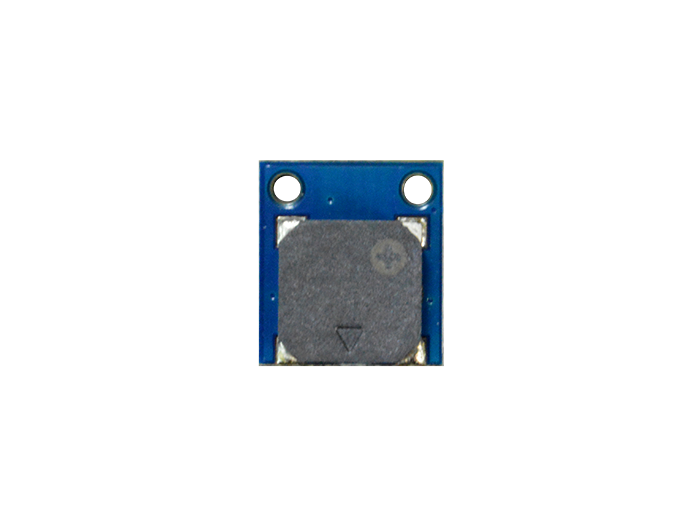

Buzzer Wireling
Buzzer Wireling compared to a dime
Buzzer Wireling back view
Buzzer Wireling
Buzzer Wireling
Buzzer Wireling compared to a dime
Buzzer Wireling back view
Buzzer Wireling

Buzzer Wireling

AST1035

48 in stock
$ 4.95 Save $ -4.95
OR
DESCRIPTION

This Wireling uses the AST7525MATRQ buzzer to give you the ability to add a variety of tones to your next project!

New to Wirelings? Check out the Wireling Overview!

Note* 5-Pin Wireling cables not included and sold separately.

    TECH SPECS

     AST7527MATRQ Specs

    • Oscillation frequency 2700Hz
    • Sounds pressure level 85 dB/min at 10cm

      TinyDuino Power Requirements

      • Voltage: 3.0V - 5.5V
      • Current:  100mA (Max Rating).

      Pins Used

      • A5/SCL - I²C Serial Clock line
      • A4/SDA - I²C Serial Data line

      Dimensions

      • 10mm x 10mm (.394 inches x .394 inches)
      • Max Height (from the lower bottom of Wireling to upper top Wireling Connector): 6.25mm (0.25inches)
      • Weight: 1 gram (.04 ounces)
      NOTES
      • You can also use this shield without the TinyDuino – modifying the connecting cable by removing the opposite connector and stripping/tinning the wires, you can solder the connector cable to any other microcontroller board of your choice!
