AST2001

$ 2.95 Save $ -2.95
OR
DESCRIPTION

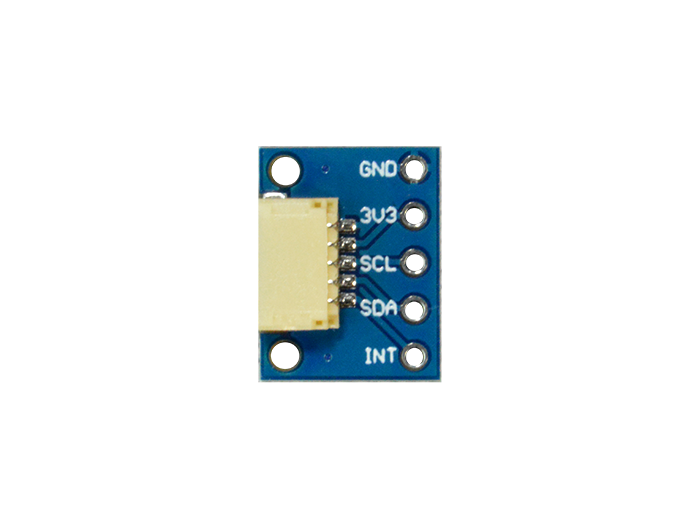

Includes 0.1" connections for GND, 3V3, SCL, SDA, and INT so that you can connect any I2C device, button, or another device into a Wireling project.

New to Wirelings? Check out the Wireling Overview!

Note* 5-Pin Wireling cables not included and sold separately.

TECH SPECS

TinyDuino Power Requirements

  • Voltage: 3.0V - 5.5V

Pins Used

  • A5/SCL - I²C Serial Clock line
  • A4/SDA - I²C Serial Data line

Dimensions

  • 10mm x 13mm (.394 inches x .512 inches)
  • Max Height (from the lower bottom of Wireling to upper top Wireling Connector): 3.70mm (0.15 inches)
  • Weight: 1 gram (.04 ounces)
NOTES
  • You can also use this Wireling without the TinyDuino – modifying the connecting cable by removing the opposite connector and stripping/tinning the wires, you can solder the connector cable to any other microcontroller board of your choice!
  • Weight: 1 gram (.04 ounces)
DOWNLOADS
Back to Wireling Inputs + Outputs
