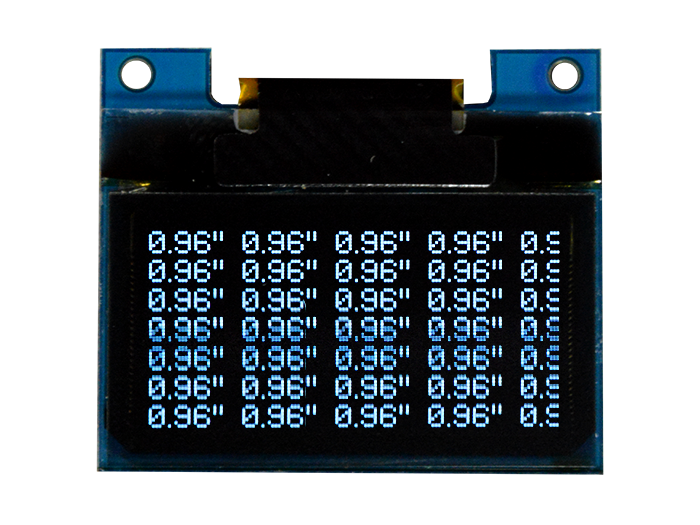

0.96" Wireling Screen
0.96" Wireling Screen compared to a dime
0.96" Wireling Screen
0.96" Wireling Screen back view
0.96" OLED Screen Wireling
0.96" Wireling Screen
0.96" Wireling Screen compared to a dime
0.96" Wireling Screen
0.96" Wireling Screen back view
0.96" OLED Screen Wireling

0.96" OLED Screen Wireling

AST1032

6 in stock
$ 10.95 Save $ -10.95
OR
DESCRIPTION

This Wireling lets you display text and images via a 0.96" OLED Display! This 128x64 pixel screen features white pixels on a black background and is controlled via the I²C bus.

The screen uses an internal boost converter to achieve the higher voltages required to drive the screen, so there's no additional external hardware required!

New to Wirelings? Check out the Wireling Overview!

Note* 5-Pin Wireling cables not included and sold separately.

    TECH SPECS

    ER- OLED0.96-1W Specs

    • 128x64 pixel resolution
    • 0.96" size (measured diagonally)
    • White Monochrome
    • Internal boost converter
    • I²C Interface

    TinyDuino Power Requirements

    • Voltage: 3.0V - 5.5V

    Pins Used

    • A5/SCL - I2C Serial Clock line
    • A4/SDA - I2C Serial Data line

    Dimensions

    • 27mm x 21mm (1.06 inches x 0.827 inches)
    • Max Height (from lower bottom of Wireling to upper top Wireling Connector): 5.00mm (0.197 inches)
    • Weight: 1 gram (.04 ounces)
    NOTES
    • You can also use this shield without the TinyDuino – by clipping the connector off the opposite end and soldering the wires to another board, you can use it with the microcontroller or development board of your choosing!
