MicroSD / Audio TinyShield

ASD2205-R

New!
New!

84 in stock


  • Free Shipping for orders over $50
  • Available Worldwide



  • DESCRIPTION

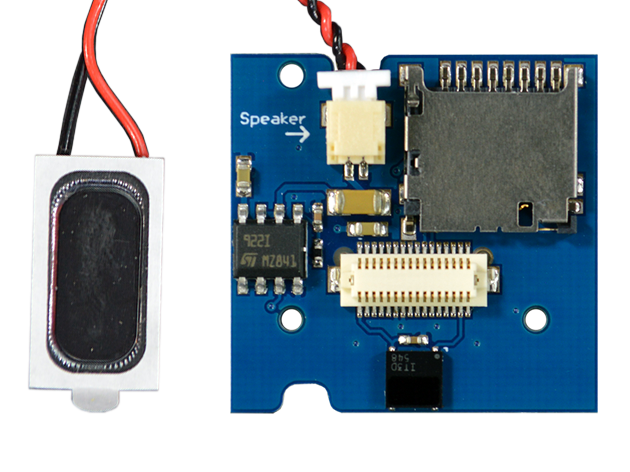

    This TinyShield is designed specifically for the TinyScreen+ to allow for video playback in a very compact package.  This TinyShield adds a microSD Adapter to store video and image files, an audio amplifier for driving a speaker, and an IR receiver.  The 16x9 speaker is also included with this board and can be connected to the speaker port.

    Note: This does not include the microSD card (sold separately), you can get a compatible microSD card here.

    To learn more about the TinyDuino Platform, click here


      TECHNICAL DETAILS

      microSD Specs

      • Uses standard Arduino SD Card Library
      • Supports most standard microSD cards and SDHC cards- cards larger than 8GB may not work!

      Power Requirements

      • Voltage: 3.0V - 5.5V
      • Current: up to approximately 100mA while reading from microSD card

      Pins Used

      SPI Interface for microSD card:

      • 10 - CS: This signal SPI chip select for the microSD card
      • 11 - SCLK: This signal is the serial SPI clock out of the TinyDuino and into the microSD card.
      • 12 - MISO: This signal is the serial SPI data out of the microSD card and into the TinyDuino.
      • 13 - MOSI: This signal is the serial SPI data out of the TinyDuino and into the microSD card.

      Additional:

      • A0 - DAC Output: Analog output for audio amplifier
      • 3 - IR Input: Output signal from infrared receiver 6.8 3.6

      Dimensions

      • 25.8mm x 25.0mm (1.02" x 0.98") Note: microSD car overhanges the edge by approx 3mm for easy removal
      • Maximum height of board: 3.6mm (0.14")
      • Thickness with TinyScreen+ attached: 6.8mm (0.27")
      • Weight (TinyShield only): 1.62 grams (0.06 ounces)

      Notes

      • This TinyShield is designed specifically for the TinyScreen+ and may not properly mate with other TinyShields or processor boards.
      • This does not include the microSD card (sold separately), you can get a compatible microSD card here.
