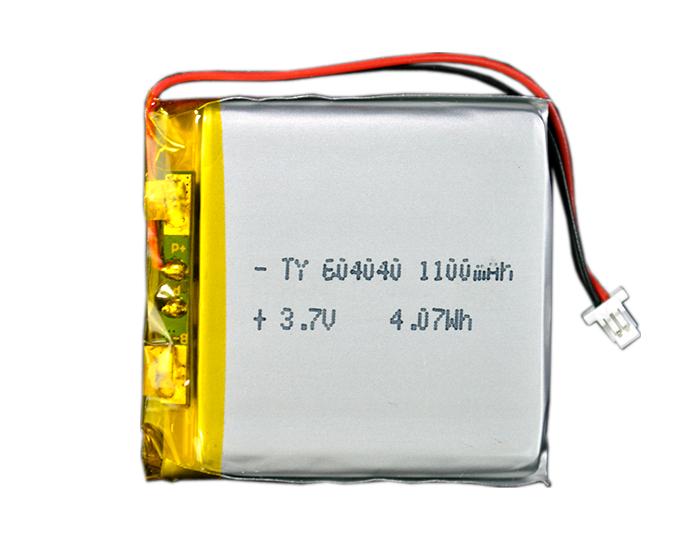

Lithium Ion Polymer Battery - 3.7V 1100mAh
DESCRIPTION
This is a rechargeable lipo battery that works perfectly with the TinyDuino Processor board to power your projects. The battery has a capacity of 1100mAh at 3.7V, the voltage can range from 4.2V when fully charged to 3.0V when completely discharged. The battery includes protection circuitry to protect the battery from overcharging or completely discharging.
This battery includes a micro JST SH connector, which is used on TinyCircuits products that support Lithium-ion batteries.
TECH SPECS
- Nominal Voltage: 3.7V
- Nominal Capacity: 1100mAh
- Max Charge Current: 1100mA (1C)
- Max Discharge Current: 1100mA (1C)
- Dimensions: 40±3.0mm x 40±2.0mm x 6.0±0.5mm (1.57±0.12" x 1.57±0.09" x 0.24±0.02")
- Wire Length: 55.0±5.0mm (2.17±0.20")
- Weight: 20.0 grams (.705 ounces)
- Battery Connector: JST SHR-02V-S-B
- Mating Connector: JST SM02B-SRSS-TB(LF)(SN)
DOWNLOADS
- CAD and images
- Battery Datasheet
- Material Safety Datasheet (MSDS)
- Certifications: UL1642, UN38.3, IEC62133
IN THE BOX
1× device (assembled) · 1× USB-C cable · Quick-start card
SPECIFICATIONS
Made & tested in Akron, Ohio, USA.
SHIPPING & RETURNS
Ships from Akron, Ohio within 1–2 business days. Free USPS shipping on U.S. orders over $100. 30-day returns on unused units in original packaging.
Customer Reviews
Needed this type of battery for a lorawan device that I was constructing. These batteries were a good price, well made and fit perfectly!
These are excellent batteries. We have bought between 1000 and 2000 of these over a couple of years. They are reliable and hold up over time. Highly recommended!
We have used hundreds of these batteries with great success. I would highly recommend this battery and the great customer service at TinyCircuits!
Provides more than 24 hours of runtime even with multiple sensors in the TinyDuino stack running continuously. Shape ideal for smaller enclosures.
