TinyLily Platform

The TinyLily Platform is an Arduino compatible module in an ultra-compact package. Designed to be used in e-textile and wearable applications when sewn with conductive thread. Smaller than a dime, the TinyLily is very similar to the Arduino LilyPad with the same processing power and software compatibility but it's 1/12th of the size!

To learn more about our TinyLily Platform please visit our learn page.


TinyLily Mini Processor

$ 9.95

The TinyShield 7 Segment Display Board contains two seven segment LEDs (Red LEDs) that can be set over the I2C (thus saving signals to do other tasks) by using a Semtech SX1506 I/O expander. Each of the segments including the decimal indicator can be individually selected, and a library is provided to make it extremely easy to use.

Learn More →



This is a standalone Lithium battery charger which lets you charge up your batteries from a micro USB cable. The battery can connect to a JST SH connector (the battery connector on the batteries that we sell at TinyCircuits). You can also use this without the JST connector with two large through holes to connect to an battery pack.

Learn More →

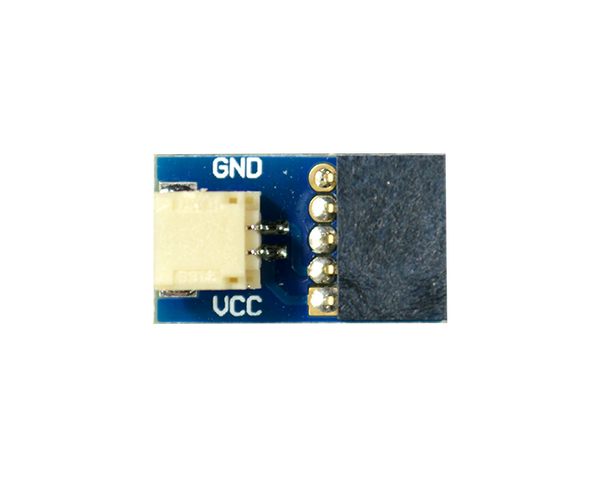

Connect up your TinyLily Mini to standard battery packs that use the JST SH connector (the kind that we sell at TinyCircuits). You can also use this without the JST connector with two large through holes to connect to an external power supply or battery pack.

Learn More →

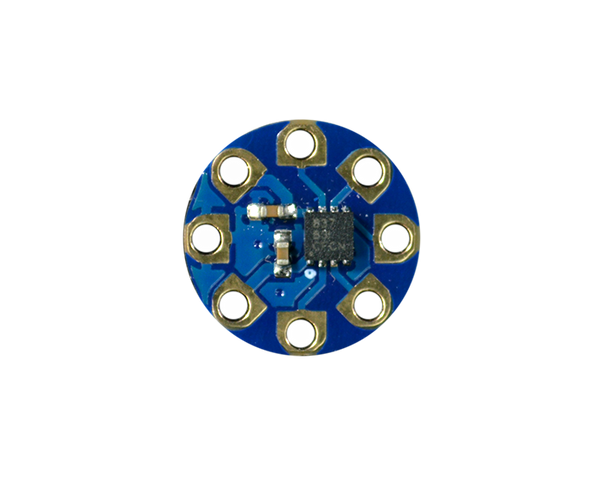

When TI came out with the world’s smallest DC motor driver chip, we knew we had to build a board around it. Based around the 2mm x 2mm TI DRV8837 Motor Driver (H-Bridge) IC, this board is incredibly tiny at only 10mm in diameter, yet can drive a 5V 500mA motor!

Learn More →

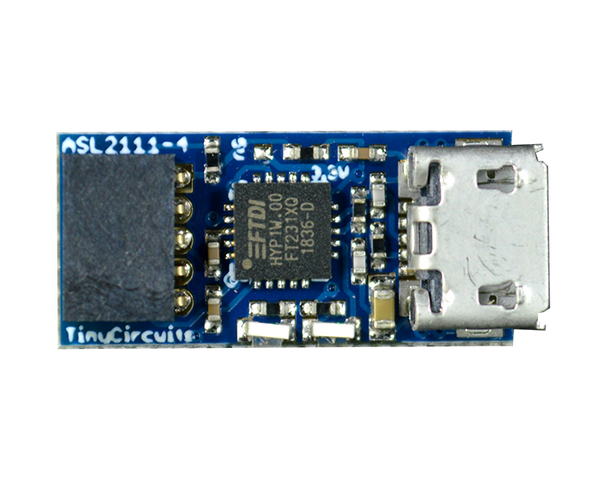

The TinyLily Mini USB Adapter lets you program your TinyLily Mini processor, provides power, and can be used for communication

Learn More →



A nice tiny washable switch (the switch itself is just 3x3mm) in an extremely compact size and incredibly thin. This is a momentary push switch, the two contacts are connected when the switch is pushed and open when it’s released.

Learn More →

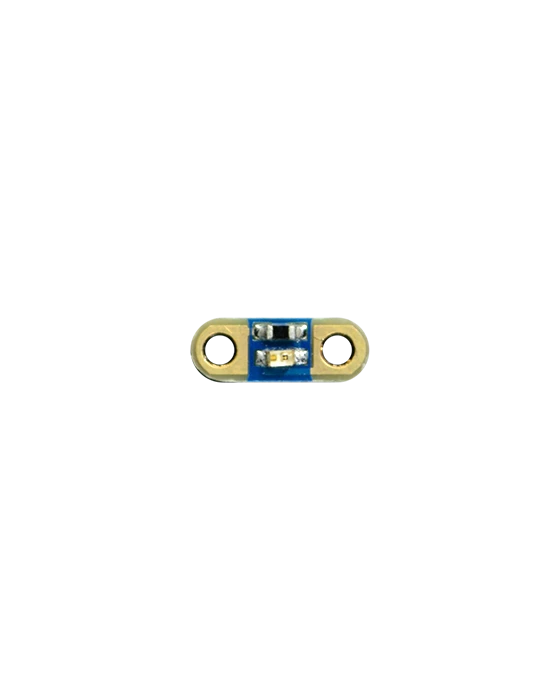

So you want the smallest possible sewable LED for your project? Try out the TinyLily LED 0402 which sports a total size of just 6.5mm x 2.5mm!

Learn More →

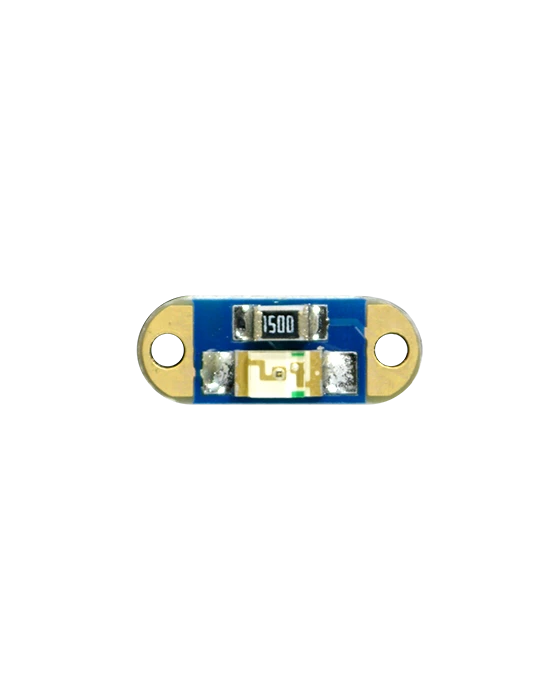

A standard size LED in an extremely compact size of 10.2mm x 4mm, with two standard TinyLily sewtabs and a current limiting resistor, so you don’t have to worry about blowing it up or adding an external resistor.

Learn More →



This TinyLily Sewable sensor board features the high performance and low power Bosch BMA250 3-axis accelerometer. The BMA250 allows measurement of accelerations in three perpendicular axes and thus senses tilt, motion, shock, and vibration in your projects.

Learn More →

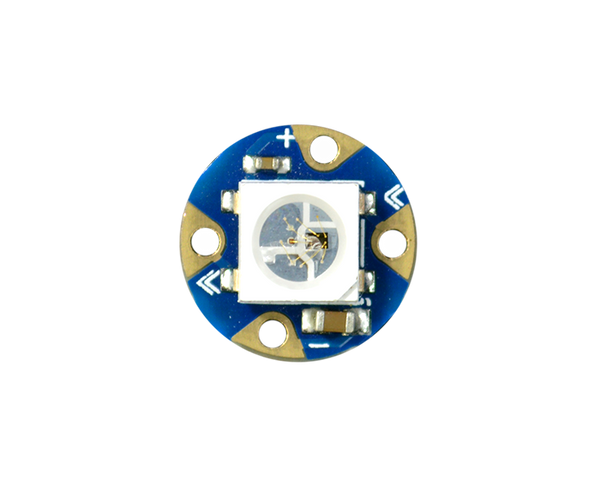

TinyLily RGB LED

from

$ 1.95

This sewable board features a 5mm RGB LED, enabling you to add 24-bit resolution color to your Tiny Project! This LED has a built in driver IC, so it requires special libraries and serial data, not just applied voltage.

Learn More →



Spun from stainless steel fiber you can use it as a creative way to connect various electronics onto clothing projects. These spools are a great way to get into wearable electronics.

Learn More →



This Sewing Kit with Conductive Thread has the bare essentials to get you going on your next wearable project!

Learn More →



This TinyLily Mini Basic Kit has the bare essentials to get going with the TinyLily e-Textile system.

Learn More →



This TinyLily Mini Starter Kit lets you really get going to create some cool projects with the TinyLily Mini!

Learn More →
