Proto Board 2 TinyShield (discontinued)

ASD2003-R


  • Free Shipping for orders over $50
  • Available Worldwide


  • DESCRIPTION

    Note: This TinyShield has been discontinued and replaced with the Proto TinyShield

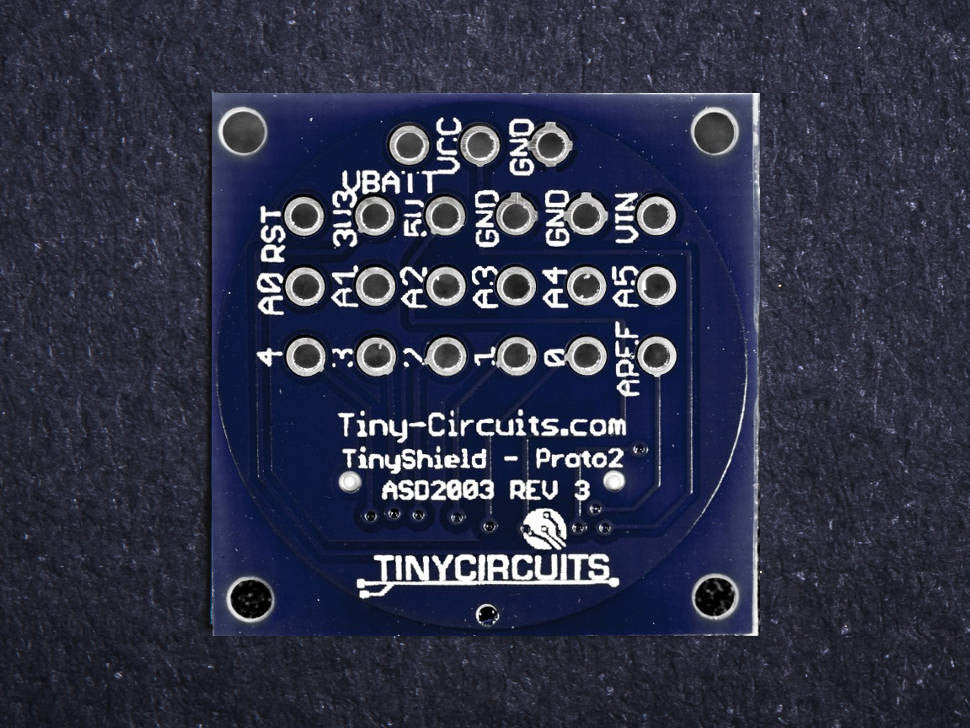

    This proto board brings many of the TinyShield signals out to a point that you can solder to. All of the signals are marked and are spaced with 0.1″ spacing (same spacing as on the standard Arduino Uno), so a standard 0.1″ header can be used if desired.

    To learn more about the TinyDuino Platform, click here

      TECH SPECS

        Pins Supported

        • Subset of shield signals supported
        • VCC, VBATT,+3V3, +5V, VIN, GND, RESET, 0, 1, 2, 3, 4, AREF, A0, A1, A2, A3, A4/SDA, A5/SDL

        Dimensions

        • 20mm x 20mm (.787 inches x .787 inches)
        • Max Height: (from lower bottom TinyShield Connector to upper PCB level): 2.81mm (0.111 inches)
        • Weight: 0.73 grams

        NOTES

        • When using soldered wires, take care not to allow this to short out to boards above or below in the stack (ie, some pins could short out to the USB connector if the wires are long). If needed, use tape to insulate the solder connections
