Proto Board 1 TinyShield (discontinued)


Regular price $ 3.95 Save $ -3.95


Note: This TinyShield has been discontinued and replaced with the Proto TinyShield

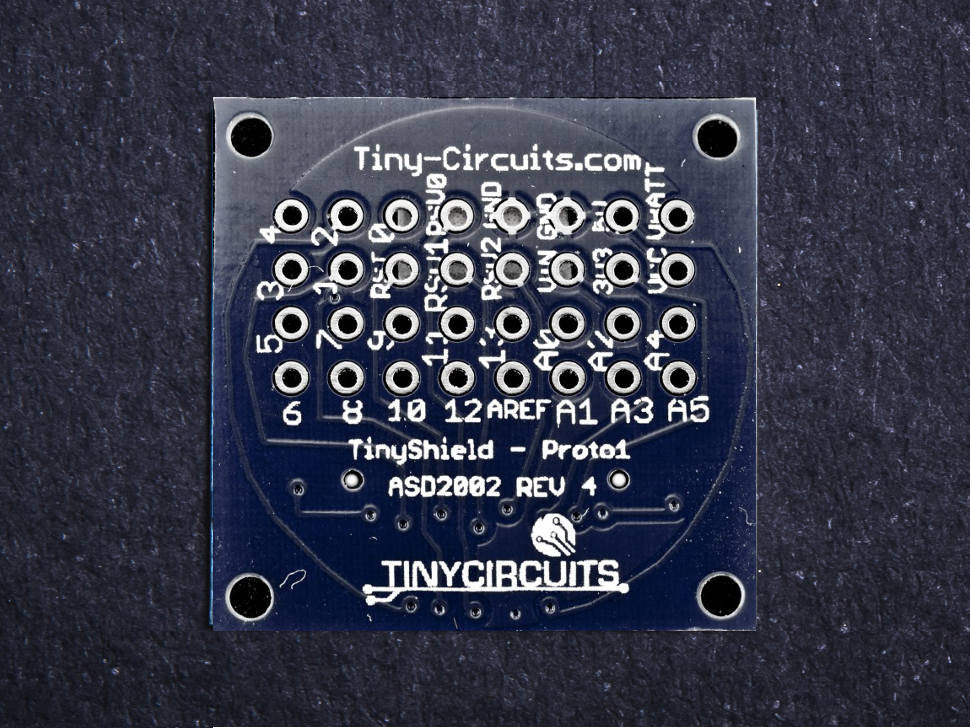

This proto board brings every one of the TinyShield signals out to a point that you can solder to. All of the signals are marked and are spaced with 2mm spacing, so a standard 2mm header can be used if desired.

To learn more about the TinyDuino Platform, click here

      Pins Supported

      • All Shield signals supported
      • VCC, VBATT,+3V3, +5V, VIN, GND, RSV2, RSV1, RSV0, RESET, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, SS, MOSI, MISO, SCK, AREF, A0, A1, A2, A3, A4/SDA, A5/SDL


      • 20mm x 20mm (.787 inches x .787 inches)
      • Max Height: (from lower bottom TinyShield Connector to upper PCB level): 2.81mm (0.111 inches)
      • Weight: 0.73 grams
      • When using soldered wires, take care not to allow this to short out to boards above or below in the stack (ie, some pins could short out to the USB connector if the wires are long). If needed, use tape to insulate the solder connections
