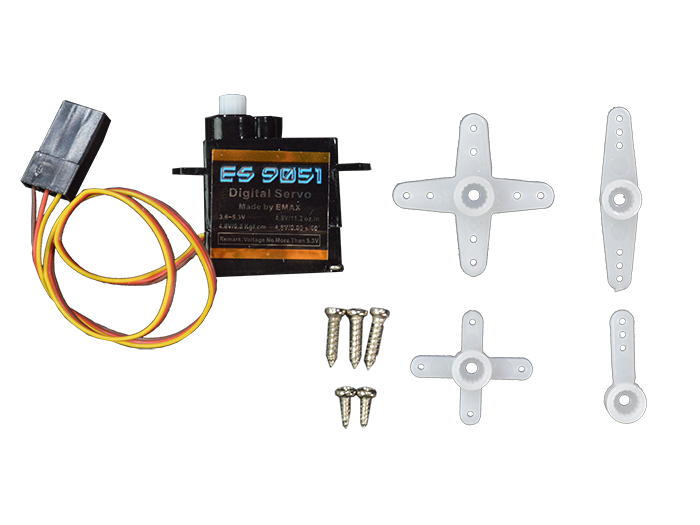

EMAX ES9051 Mini 4.1g Digital Servo

ASR00058-S

42 in stock


  • Free Shipping for orders over $50
  • Available Worldwide



  • DESCRIPTION

    If you need high torque and precision in a tiny package, this is the servo to get. It is a digital servo so position accuracy is second to none.

    This servo is available with two different connectors. The JR Connector is the standard servo plug that will work with any normal radio control receiver. The JST-SH connector is much smaller and works with the Servo TinyShield and Horizon Hobbies Ultra Micro radio control electronics. Be sure to select the correct connector for your application.


      TECHNICAL DETAILS

      Performance Specs

      • Voltage: 3.6-5.3V
      • Torque at 4.8V: 0.8kg.cm
      • Speed at 4.8V: 0.09s / 60 degrees
      • Gear Material: Plastic
      • Weight: 4.1g

      Dimensions

      • 19.7x8.3x23.2mm (see diagram in photos)
      • Weight: 4.1 gram (.145 ounces)

        Notes

        • Weight is without wire.
