Color Sensor Wireling

AST1004

Whisker Kickstarter Item


Note: This item is currently only available on Kickstarter, it will be for sale on our site after the Kickstarter is complete and rewards have been fulfilled


5 in stock


DESCRIPTION

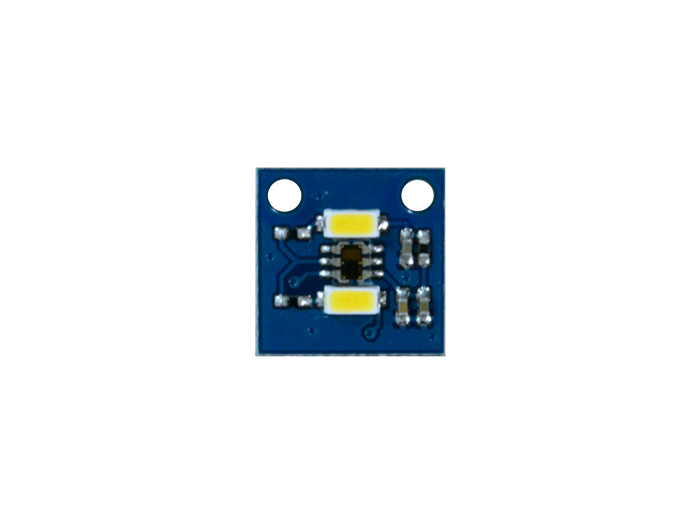

This Wireling lets you measure ambient light and color temperature via the TCS3472 Color Sensor and onboard emitting LEDs. This I²C sensor measures red, green, blue and clear light with 16-bit resolution. The interrupt registers may be used to set threshold values independently for each color register (RGBC) to improve system efficiency and avoid continuous polling of the sensor.

    TECH SPECS

    AMS TCS3472 Color Sensor Specs

    • 16-bit color resolution
    • I²C Communication Protocol
    • Ambient Light Detection
    • Color Temperature Detection
    • 2.5µA typ. during Sleep Mode
    • 65µA typ. during Wait State

    LEDs

    • Populated for aid in color sensing
    • Can be toggled on/off in Arduino Sketch

    TinyDuino Power Requirements

    • Voltage: 3.0V - 5.5V
    • Current: 2.5uA (Low Power Sleep Mode)

    Pins Used

    • A5/SCL - I²C Serial Clock line
    • A4/SDA - I²C Serial Data line

    Dimensions

    • 10mm x 10mm (.394 inches x .394 inches)
    • Max Height (from the lower bottom of Wireling to upper top Wireling Connector): 4.30mm (0.17 inches)
    • Weight: 1 gram (.04 ounces)

    NOTES

    • You can also use this shield without the TinyDuino – modifying the connecting cable by removing the opposite connector and stripping/tinning the wires, you can solder the connector cable to any other microcontroller board of your choice!
