Matrix LED TinyShield

ASD2413-R-LG

58 in stock


  • Free Shipping for orders over $50
  • Available Worldwide


  • DESCRIPTION

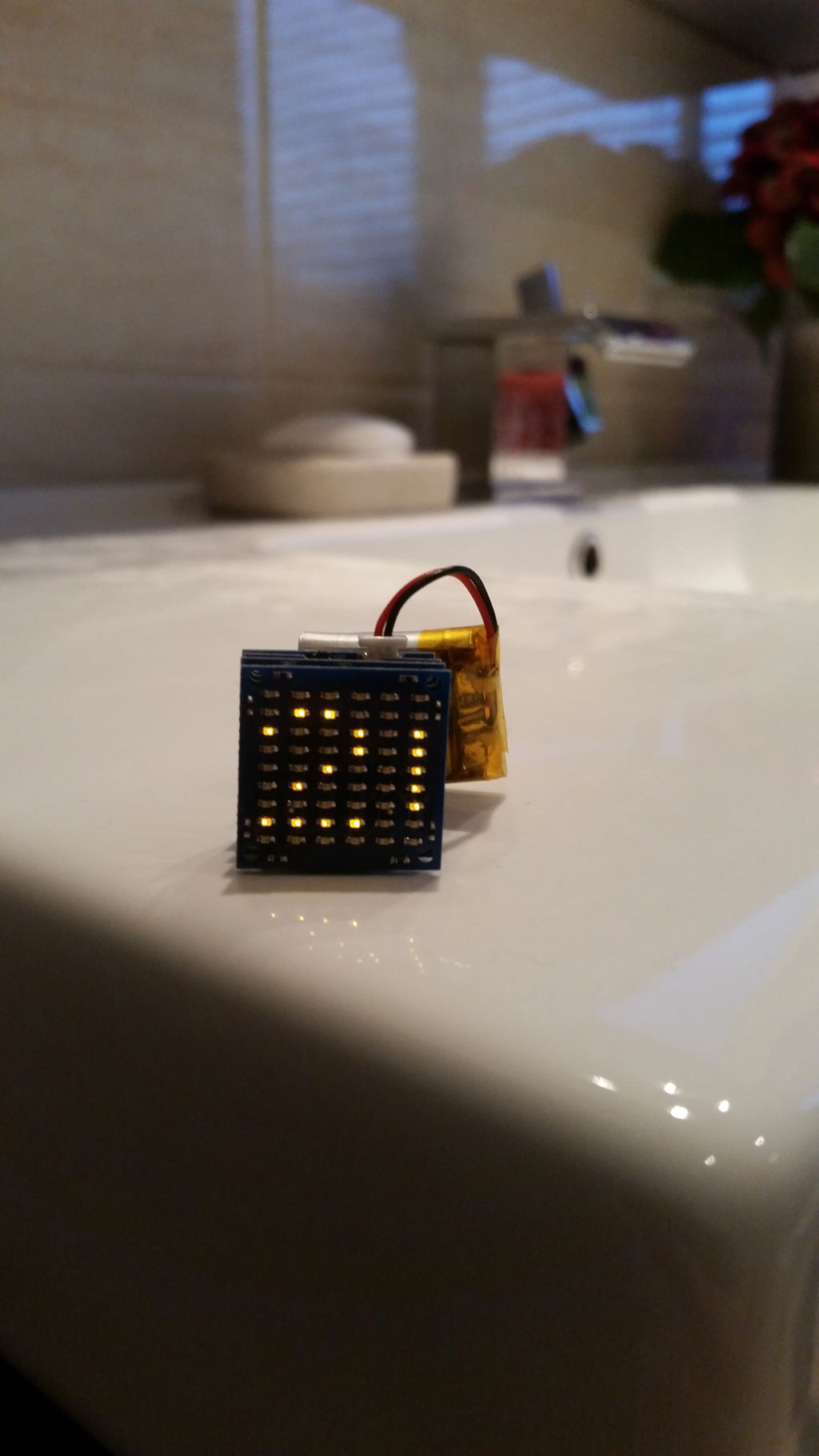

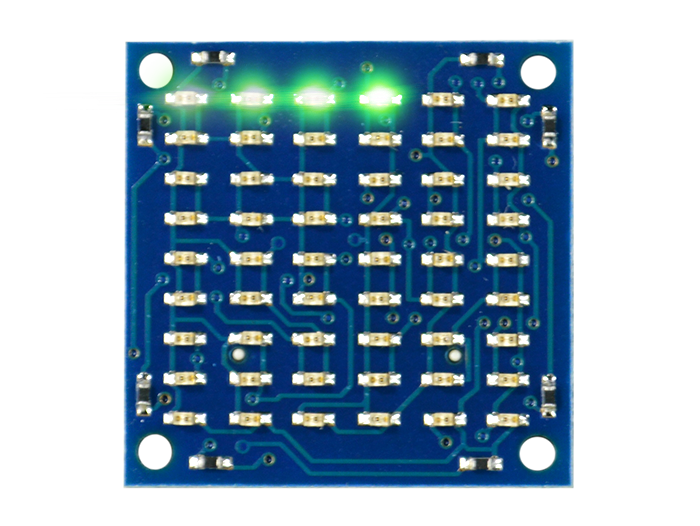

    The Matrix LED TinyShield is a 6 x 9 grid of LEDs (54 total LEDs) that are individually addressable, which lets you scroll text, draw images, and do all sorts of other things. This TinyShield is compatible with the popular Arduino LoL (Lots of LEDs) Shield Library created by Jimmie Rodgers.

    The LEDs are arranged using Charlieplexing, which is a technique to allow for control of multiple LEDs using fewer I/O signals. Available with Red, Green, and Amber LED color options.

    To learn more about the TinyDuino Platform, click here

      TECH SPECS

      To see what other TinyShields this will work with or conflict with, check out the TinyShield Compatibility Matrix

      LED Specs

      • 54 Top Facing LEDs in a 6×9 Matrix
      • Charlieplexed IO on 8 signals
      • Available in Green, Amber or Red

      TinyDuino Power Requirements

      • Voltage: 3.0V - 5.5V
      • Current:
        • 1.5mA per LED (3.0V)
        • 5.0mA per LED (5.0V)
        • Due to the low current, this board can be run using the TinyDuino coin cell option

      Pins Used

      • Pins 2, 3, 4, 5, 6, 7, 8, and 9 are used, see schematic or sample code for connections

      Dimensions

      • 20mm x 20mm (.787 inches x .787 inches)
      • Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 3.31mm (0.130 inches)
      • Weight: .75 grams (.027 ounces)

      NOTES

      • This TinyShield uses a lot of IO pins and will conflict with many other TinyShields.  If you're planning on using other TinyShields with it, be sure to check the TinyShield Compatibility Matrix to make sure they can be used at the same time.
      • The LEDs are hooked up using Charlieplexing, a technique for driving many LEDs with only a few IO signals.  See the tutorial to learn more about this and how to use the open source library to control these easily .

      DOWNLOADS

      LEARN

        Matrix LED TinyShield Tutorial
        If you're looking to add some visualization to your project, the Matrix LED TinyShield provides a great way to display text, images, and other feedback across 54 LEDs coming in red, green, or amber. This tutorial teaches the basics of using this TinyShield for various applications.
        Using the Matrix LED TinyShield Tutorial
        Using the Matrix LED TinyShield Tutorial
        Learn how to program the Matrix LED TinyShield using this simple tutorial!
