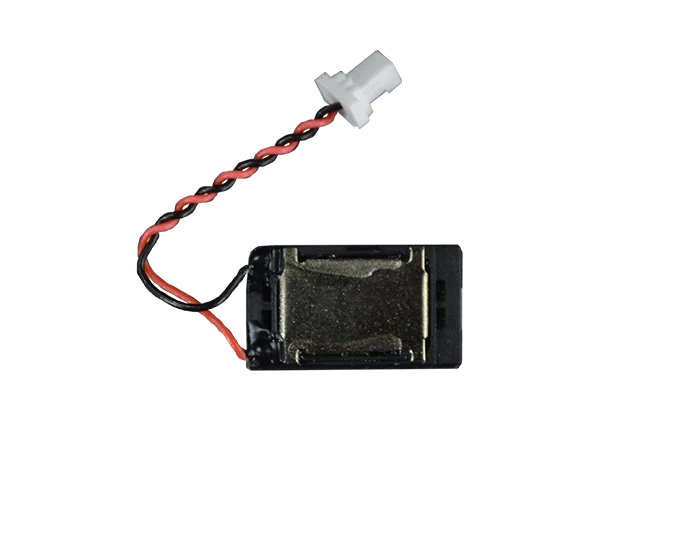

Speaker 16X9mm W/ JST SH Connector
Speaker 16X9mm W/ JST SH Connector compared to a dime
Speaker 16X9mm W/ JST SH Connector

Speaker 16X9mm W/ JST SH Connector

ASR00019

4239 in stock
Regular price $ 2.95 Save $ -2.95

OR

Add sound to your TinyDuino project! This speaker uses the same JST connector that can be found on our microSD and Audio TinyShield, meaning it can be plugged right in without any soldering or crimping. It also is adhesive-backed, so all you need to do is peel and stick.

This is also the same speaker that is used in our Tiny Arcade Kit.

    Dimensions

    • Wire Length: 30mm
    • Speaker Dimensions: 16mm L, 9mm W, 3.5mm T (0.630 x 0.354 x 0.378 inches)
    • JST-SH Connector Pitch: 1mm (0.039")
    • Wire Length: 40mm +-5mm
    • Nominal Impedance: 8 ohm
    • Rated Power: 0.7W
    • Maximum Power: 1.0W
    • Resonant Frequency: 750Hz+-20%
    • Magnet Material: NeFeB
    • Electromagnetic speaker
    • Approximate max voltage: 5V
