Tiny Inclinometer

by Tony Batey February 11, 2015

Tiny Inclinometer


Overview

Accelerometers can be used to sense changes in force, such in movement, shock, and position.  Since accelereometers are affected by the acceleration of gravity, they can be used to measure tilt and their relation to the earth's surface.

This is a simple little handheld project that will let us measure angles and inclines using TinyCircuits.  We'll be using an accelerometer to measure the angle of an incline and then display the angle to a 7 segment display, and we'll be powering the system off a small coin cell battery.  No soldering is needed and this only takes a few minutes to put together.


    Materials Needed


      Assembly

      Assembly for this project is fairly simple, no soldering is needed.

      Plug the TinyDuino Processor, USB TinyShield, Accelerometer TinyShield and 7-segment TinyShield together into a TinyDuino stack.  Connect up to your computer using the USB Cable and program the below sketch to the TinyDuino.

      Note: After programming is complete, you can remove the USB TinyShield to make the size of your TinyDuino stack smaller and run off the battery.


        Operation

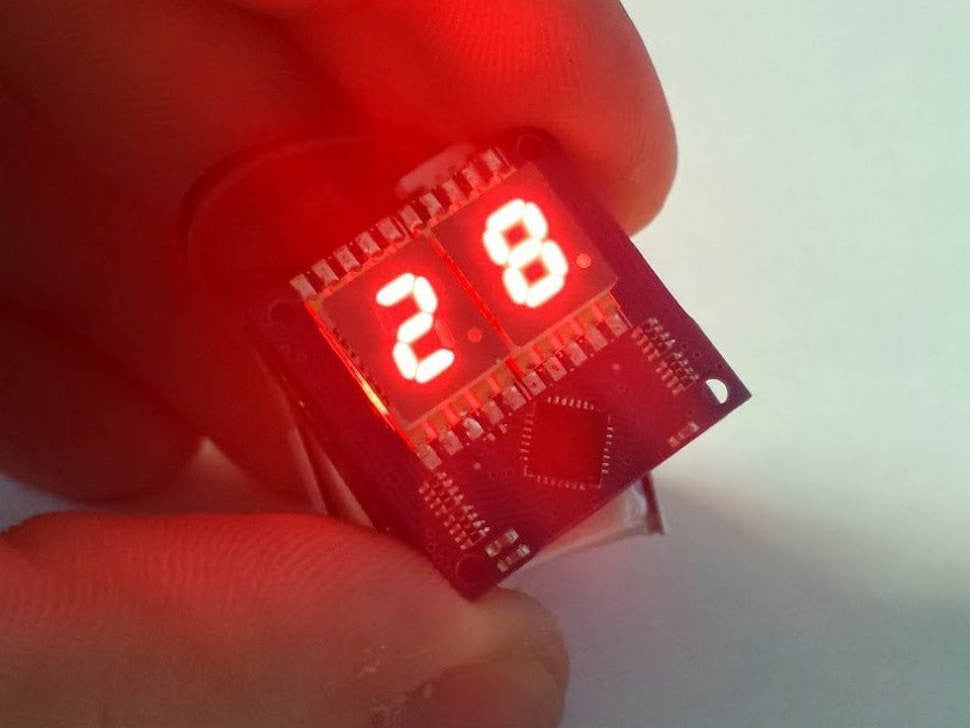

        Once programmed, you should see the 7-segment display measuring the angle of the board in relation to the ground.  Rotate the display and you should see the numbers change as it's reading new angles.


          Downloads



          Tony Batey
          Tony Batey

          Author
